Andersen 400 Series Frenchwood Gliding Patio Doors

Andersen 400 Series Frenchwood Gliding Patio Doors

  • Dual ball-bearing rollers on door panels provide smooth gliding operation with self-contained leveling adjusters
  • Factory assembled doors are available (two-panel doors) and arrive at the jobsite ready to install
  • A full-length combination weatherstrip/interlock system provides a flexible seal at the meeting stile
  • Panels are silicone bed glazed and finished with an interior wood stop
  • Patterned glass options are available

Request Pricing Get Brochure

400 Series Brochure

It Worked

Your Andersen 400 Series Frenchwood Gliding Patio Doors Brochure is in your inbox.

  • Colors
  • Hardware
  • Grilles
  • Glass
  • Blinds
  • Insect Screens
  • Trim
  • More Options
  • Other Features
Colors

Interior

  • White
  • Pine
  • Maple
  • Oak

Exterior

  • White
  • Sandtone
  • Terratone
  • Forest Green
Hardware

Hardware Finishes

  • White
  • Stone
  • Black
  • Gold Dust
  • Brushed Chrome
  • Bright Brass
  • Distressed Bronze
  • Distressed Nickel
  • Oil Rubbed Bronze
  • Satin Nickel
  • Antique Brass
  • Polished Chrome

Hardware Styles

  • Albany

    Black, Gold Dust, Stone, White

    *Black finish pictured

  • Tribeca®

    Stone, White

    *White finish pictured

  • Anvers®

    Bright Brass, Oil Rubbed Bronze, Satin Nickel

    *Satin Nickel finish pictured

  • Newbury®

    Antique Brass, Bright Brass, Brushed Chrome, Oil Rubbed Bronze, Polished Chrome, Satin Nickel

    *Polished Chrome finish pictured

  • Covington™

    Antique Brass, Bright Brass, Oil Rubbed Bronze

    *Bright Brass finish pictured

  • Whitmore®

    Antique Brass, Bright Brass, Oil Rubbed Bronze, Satin Nickel

    *Antique Brass finish pictured

  • Encino®

    Distressed Bronze, Distressed Nickel

    *Distressed Bronze finish pictured

  • Yuma®

    Distressed Bronze, Distressed Nickel

    *Distressed Nickel pictured

Additional Options

  • Exterior Keyed Lock

    A six-pin key cylinder lock is available in styles and finishes that coordinate with hardware and allows the door to be locked and unlocked from the exterior.
  • Auxiliary Foot Lock

    Provides an extra measure of security when the door is in a locked position. Lock can be set so the door is fully closed or partially open to provide a secure venting position.
Grilles

Grille Types

  • Full Divided Light

    Give your window an authentic look with grilles that are permanently applied to the interior and exterior of your window with an aluminum spacer between the glass.

  • Simulated Divided Light

    Simulated divided light offers permanent grilles on the exterior and a choice of permanent or removable wood interior grilles, with no spacer between the glass.

  • Removable Interior Grille

    Removable interior wood grilles are secured via a fastener or grille clip and can be removed enabling you to easily clean the glass surface.

  • Finelight Grilles Between-the-Glass

    Finelight™ grilles are suspended between the panes of glass, allowing you to easily clean both the inside and outside of your windows and doors.

Grille Patterns

  • Prairie
  • Colonial
  • Modified Colonial
  • Modified Colonial - Simulated Check Rail
  • Short Fractional
  • Short Fractional - Simulated Check Rail
  • Tall Fractional
  • Tall Fractional - Simulated Check Rail
  • Specified Equal Light

  • Custom Patterns

    Andersen gives you complete flexibility to design your own custom grille style. You sketch it, our craftsmen will create it.
Glass

Glass

  • Low-E / Low-E4® Glass

    Most people can enjoy optimal energy performance and comfort with Low-E / Low-E4® glass. Low-E glass reflects heat in the summer and helps keep heat inside in the winter, making this a good choice in climates where both heating and cooling costs are a concern.

  • SmartSun™ Glass

    SmartSun™  glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun's heat and filters out 95% of harmful UV rays while letting sunlight shine through.

  • Sun Glass

    Sun glass offers outstanding thermal performance with a subtle tint that blocks out even more heat from the sun.

  • PassiveSun® Glass

    If you live in a cold climate, PassiveSun® glass allows the sun to heat your home.

  • Dual-Pane Glass

    Clear dual-pane glass, which offers basic thermal performance, is also available on all Andersen products in situations where codes allow its use. See local code official for requirements in your area.

  • HeatLock® Glass

    HeatLock® coating can be added to most of our glass options and reflects heat that likes to escape your home.

Decorative and Specialty Glass

  • Safety Glass
    Tempered safety glass is available on all products, and comes standard on all patio doors.

    Sound-Reducing Glass
    This glass helps reduce the volume of outside noise.  Available with Low-E, SmartSun and HeatLock coatings.

    Art Glass
    Andersen® art glass is available in a wide variety of patterns adding uncommon elegance to any home style.

    Patterned Glass
    Let in light while obscuring vision and adding a unique decorative touch to your home.

Art Glass

  • Classic Series

    The four styles included in our Classic Series panels represent major architectural design themes from the late 1800's through the 1930's. Their symmetric patterns are available in distinctive color schemes as well as colorless glass, and their caming may be finished with a gold tone, silver tone or antique patina.

  • Artisan Series

    Two designs influenced by 20th century American and European architectural schools feature striking visual patterns that evoke an extraordinary blend of art and nature.

  • Historic Series

Blinds

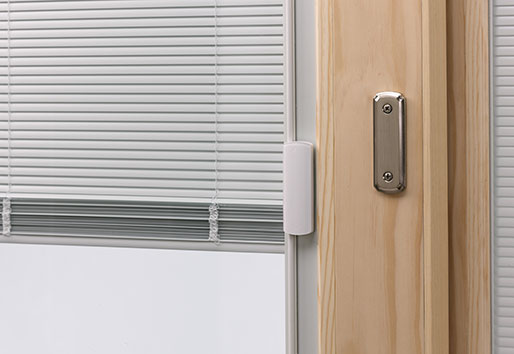

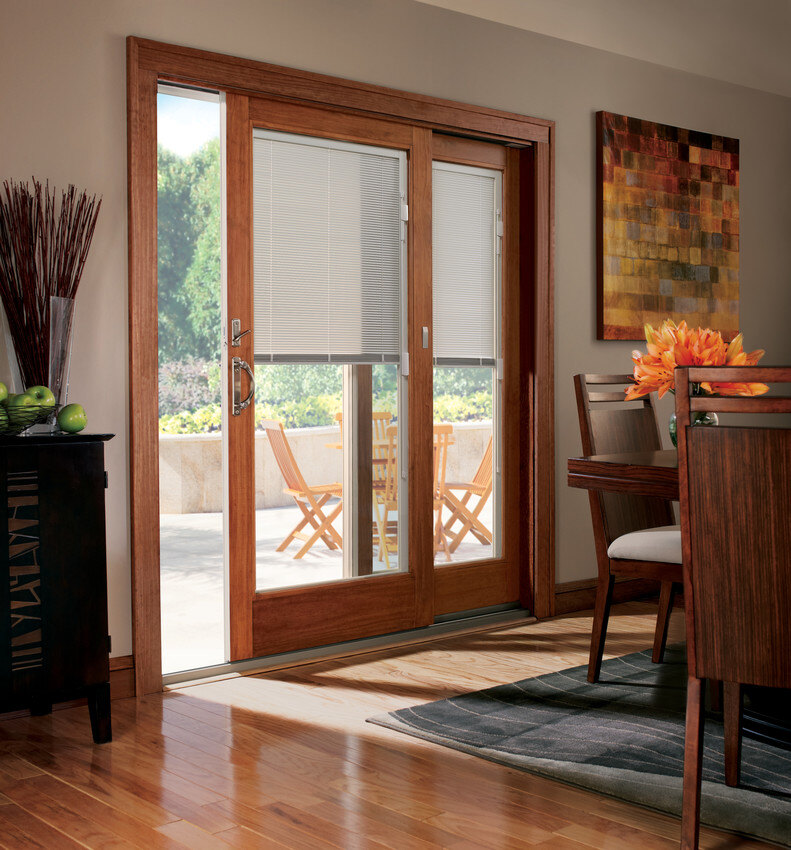

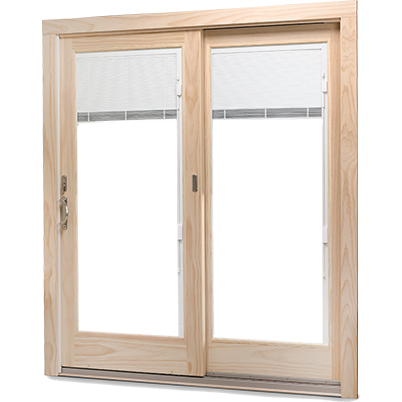

Blinds-Between-the-Glass

  • Convenient blinds-between-the-glass are now available on select 400 Series gliding patio doors.

    • White blinds are located between the panes of insulated glass, protected from dust and damage
    • Glass is easy to clean without the need to move the blinds
    • Cordless design to easily raise, lower or tilt blinds for control of light and privacy
    • Blinds are available on select gliding patio door sizes when ordered with a White exterior, Pine or Prefinished White interior and Low-E4® tempered glass



Insect Screens
  • All insect screens have a long-lasting fiberglass screen mesh with a charcoal finish and are color matched to the exterior of the door unless otherwise specified.

Insect Screens

  • Gliding Insect Screen

    The insect screen is available for both two-panel doors and four-panel doors. Gliding insect screens have Delrin® injection-molded bottom rollers with self-contained leveling adjusters, providing smooth operation. Interior and exterior pulls and latch are provided.
  • Retractable Insect Screen

    The retractable insect screen is installed on the exterior of the door and opens side-to-side across the width of the opening. When the insect screen is not in use, it neatly retracts into a small canister mounted on the exterior of the door. The retractable insect screen canister is available for two-panel patio doors. Please note, retractable insect screen track reduces clear opening height by 1".
Trim
  • Exterior Trim

    Exterior trim adds a finishing touch to your windows or doors and is often essential in achieving authentic architectural style. You can match the color of your windows or doors, or complement them with a different color.

Trim Colors

  • White
  • Canvas
  • Sandtone
  • Terratone
  • Forest Green
  • Dark Bronze
  • Black
  • Cocoa Bean
  • Red Rock
  • Prairie Grass
  • Dove Gray

Trim Styles

  • 2" Brick Mould
  • 3.5" Flat
  • 4.5" Flat

Head Trim Profiles

  • Decorative Drip Cap
  • 2" Cornice
  • 3 5/8" Cornice
More Options

More Options

  • Threshold

    An oak or maple threshold is available for finishing the interior of the sill.
  • Ramped Sill Insert

    Ramped sills provide a smooth transition from interior to exterior and can be used with a retractable insect screen, but not a gliding insect screen.
  • Sill Support

    An aluminum sill support is designed to lock into a channel under the sill and tie back into the wall. This will offer support to the outermost sill section when needed. Available in a neutral gray finish.
  • Sidelights & Transoms

    Andersen Frenchwood patio door transoms feature elegant lines that match our 400 Series Frenchwood gliding patio doors. Stationary units can also be selected for use as sidelights.
Other Features
  • Low-Maintenance

    The sill has an extruded aluminum track, with a stainless steel cap that resists stain, rust and denting and an attractive wear-resistant, heat-baked finish in a neutral gray color.

    The exterior frame is covered with rigid vinyl that maintains an attractive appearance while minimizing maintenance. The wood frame is treated with a water-repellent preservative for long-lasting protection and performance.

    A flexible vinyl weatherstrip provides a positive seal between the frame and panels.

  • Smooth Operation

    Dual ball-bearing rollers on door panels provide smooth gliding operation with self-contained leveling adjusters.
  • Maximum Strength

    Panel joints are mortise-and-tenon with patented dowel construction for maximum strength.
  • Enhanced Security

    The unique Andersen® reachout locking hardware pulls the door panel snugly into the jamb for a weathertight seal and enhanced security.

Product Specs

Brand Andersen
Series 400-Series
Product Gliding Patio Door
Exterior COlor White, Sandtone, Terratone, Forest Green
Interior Color Pine, White, Maple, Oak
Composition Wood
Uniform Sight Lines Yes
Extension Jambs Pine, oak or maple veneer or prefinished White interior extension jambs are available in 1/16" increments between 5/16" and 7 1/8".
Translucent Film Yes
Construction Type Build, Remodel, Replace
Custom Sizes Yes. Available in custom sizes to fit most projects, including replacement.
Sizing Measured in 1/8" increments
Minimum Width 55 1/4"
Maximum Width 189
Minimum Height 79 1/2"
Maximum Height 95 1/2"
Jamb Depth 4 9/16"
Threshold Oak, Maple
Blinds Between the Glass Yes
Hardware A six-pin cylinder lock is available in finished that coordinate with hardware. This lock allows the gliding door to be locked and unlocked from the exterior.
Energy Star Certification Yes
NFRC Ratings Yes
WDMA Hallmark Certification Yes
AAMA Certification Yes
Glass Warranty 20 Years
Glass-Breakage Warranty No
Non-Glass Warranty 10 Years
Labor Warranty No
Stormwatch Protection Available No
Sill Support An aluminum sill support is designed to lock into a channel under the sill and tie back into the wall.
