Andersen Folding Outswing Door

Andersen Folding Outswing Door

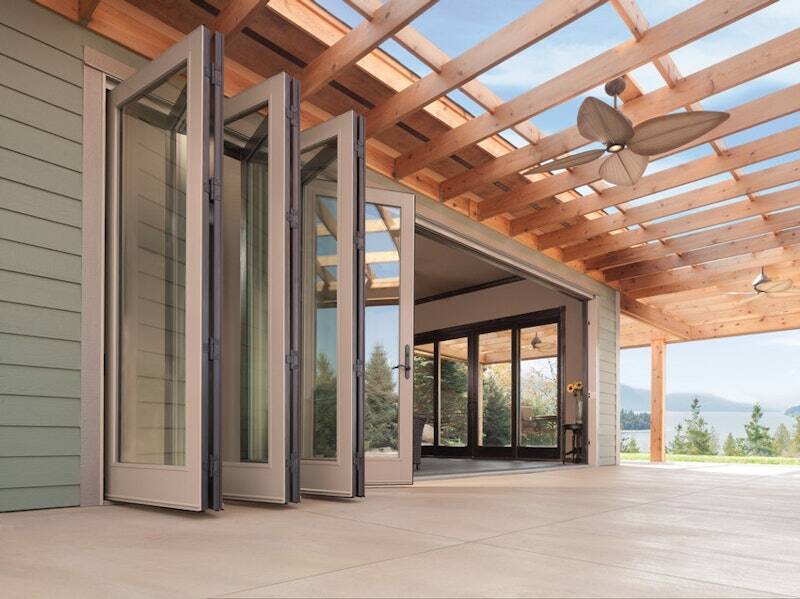

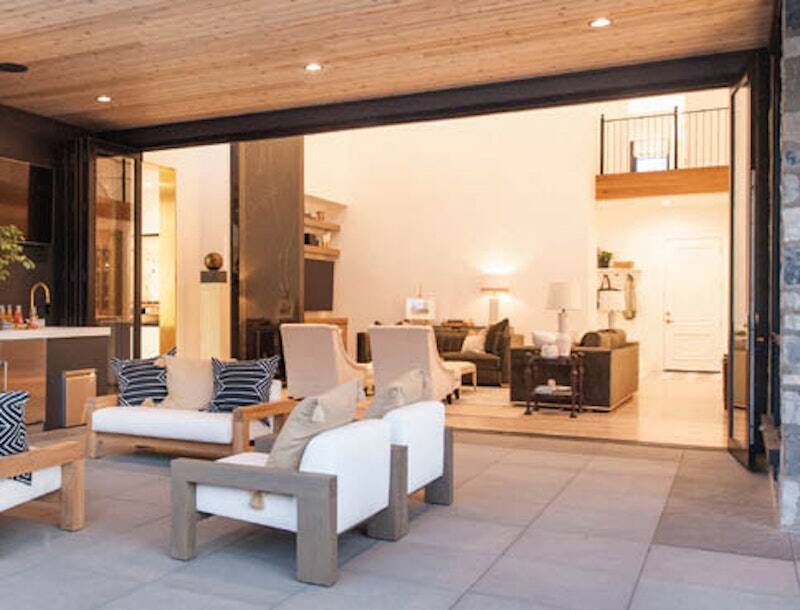

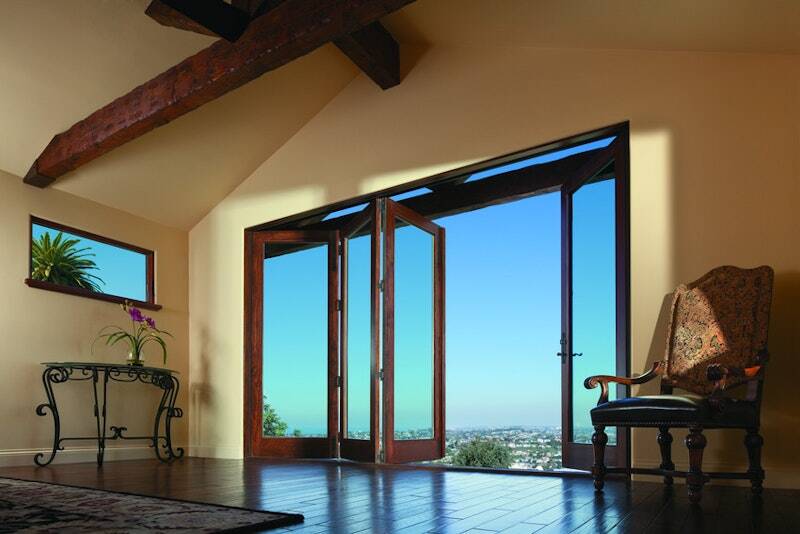

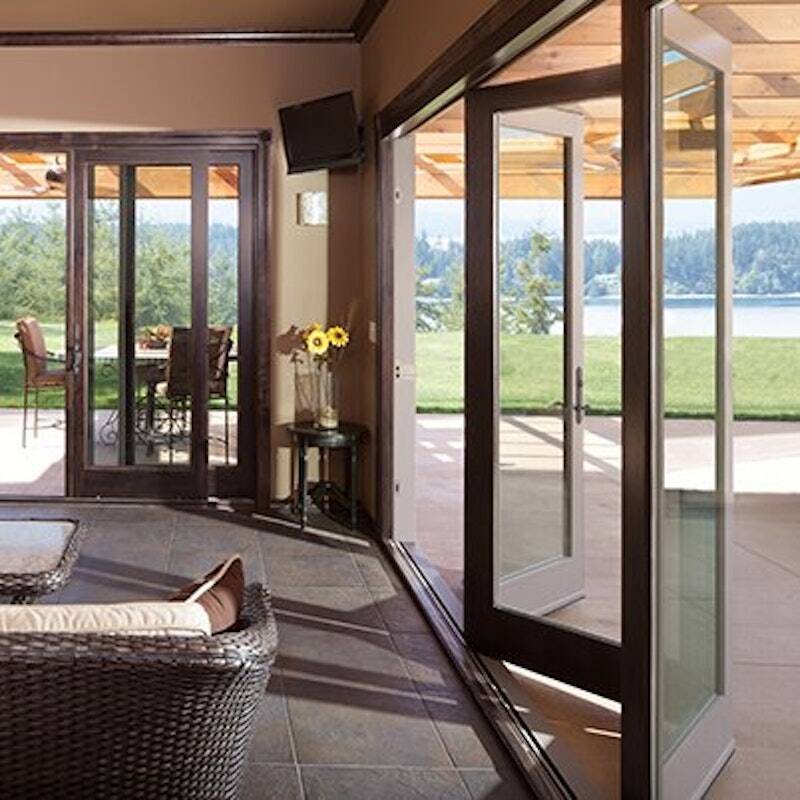

Andersen Folding Doors are made for homeowners who want to bring the outside in and inside out. This moving glass wall system beautifully frames your views and blurs the line between your indoor and outdoor space.

Made with an aluminum-clad exterior and a rich wood interior this system is designed for durability and energy efficiency. Aluminum-clad panels feature a dual weatherstrip design at the bottom and along the panel edges to provide a weathertight seal.

  • Choose between a center pivot or end pivot
  • Multi-point locking system
  • Top-hung system allows for easy operation
  • High-performance glass options available
  • Aluminum-clad exterior with wood interior (Wood exterior panel and frame construction also available)

Protected by Andersen's Owner-2-Owner Limited Warranty

Request Pricing

  • Panels
  • Colors
  • Hardware
  • Grilles
  • Glass
  • Sill Options
Panels

Panel Styles

  • Traditional Aluminum-Clad Wood

  • Contemporary Aluminum-Clad Wood

Panel Dimensions

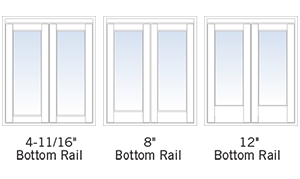

  • Traditional

    Traditional style panels feature a tall bottom rail:

    • Stiles: 4-11/16"
    • Top Rail: 4-11/16"
    • Bottom Rail: 4-11/16" or 8" or 12"
    • Panel Thickness: 1-3/4"
    • Max Panel Width: 39"

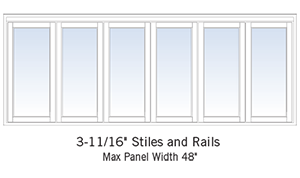

  • Contemporary

    Contemporary style panels have equal stiles and rails:

    • Stiles: 3-11/16"
    • Rails: 3-11/16"
    • Panel Thickness: 2-1/4"
    • Max Panel Width: 48"
  • folding custom panels

    Custom

    Rectangular panels are available with virtually any design. Call for more details about custom options.

Colors

Exterior Colors

  • Colony White
  • White
  • Abalone
  • Balsa White
  • Canvas
  • Maple Syrup
  • Harvest Gold
  • Prairie Grass
  • Flagstone
  • Sandtone
  • Pebble Tan
  • Carmel
  • Terratone
  • Hot Chocolate
  • Bourbon
  • Acorn
  • Coffee Bean
  • Cocoa Bean
  • Sierra Bronze
  • Dark Bronze
  • Clay Canyon
  • Red Rock
  • Cardinal
  • Bing Cherry
  • Fire Engine Red
  • Cinnamon Toast
  • Olive
  • Sage
  • Billiard Green
  • Moss
  • Forest Green
  • Mallard Green
  • Spearmint
  • Aquamarine
  • Patina
  • Sky Blue
  • Country Blue
  • Blue Denim
  • Watercolor Blue
  • Carribean Blue
  • Slate
  • Moody Blue
  • Stormy Blue
  • Dove Gray
  • Harbor Mist
  • Yorktown Pewter
  • Smokey Gray
  • Mystic Gray
  • Dark Ash
  • Black

Anodized Finish Options

  • Clear Anodized
  • Champagne Anodized
  • Light Bronze Anodized
  • Medium Bronze Anodized
  • Copper Anodized
  • Dark Bronze Anodized
  • Black Anodized

Interior Wood Species

  • Pine
  • Maple
  • Oak
  • Cherry
  • Mahogany
  • Alder
  • Walnut
  • Hickory
  • Mixed Grain Douglas Fir
  • Vertical Grain Douglas Fir
  • Custom colors, interior woods, and stains available.

Painted Interiors

  • White
  • Birch Bark
  • Primed
  • Canvas
  • Sandtone
  • Terratone
  • Forest Green
  • Dark Bronze
  • Dove Gray
  • Prairie Grass
  • Red Rock
  • Cocoa Bean
  • Black
  • Anodized Silver
Hardware

Hardware Finishes

  • Antique Brass
  • Black
  • Bright Brass
  • Brushed Chrome
  • Distressed Bronze
  • Distressed Nickel
  • Gold Dust
  • Oil Rubbed Bronze
  • Polished Chrome
  • Satin Nickel
  • Stone
  • White
  • Satin Stainless Steel

Hardware Styles

  • Albany
  • Tribeca
  • Anvers
  • Newbury
  • Covington
  • Whitmore
  • Encino
  • Yuma
  • FSB 1035
  • FSB 1075
  • FSB 1076
  • FSB 1102

Additional Hardware Options

  • Locking System

    The folding outswing door has a multi-point locking system with a hook bolt above and below the center deadbolt along with flush bolts on the non-active panels that lock into the head and sill. This system provides a weathertight seal and enhanced security.
  • folding-pull-handle

    Pull Handle

    Available in a matte black or satin stainless steel finish.

  • folding-flush-bolt

    Flush Bolt

    Available in a matte black or satin stainless steel finish.

  • Hinges

    Available in a matte black or satin stainless steel finish.

  • Concealed Shoot Bolt Handle

    Available in brushed stainless or bronze stainless.

Grilles

Grille Types

  • Full Divided Light

    Give your window an authentic look with grilles that are permanently applied to the interior and exterior of your window with an aluminum spacer between the glass.

  • Simulated Divided Light

    Simulated divided light offers permanent grilles on the exterior and and a choice of permanent or removable wood interior grilles, with no spacer between the glass.

  • Removable Interior Grille

    Removable interior wood grilles are secured via a fastener or grille clip and can be removed enabling you to easily clean the glass surface.

  • Finelight™ Grilles Between-the-Glass

    Finelight™ grilles are suspended between the panes of glass, allowing you to easily clean both the inside and outside of your windows and doors.

Grille Profiles

  • Interior Wood: Ovolo (Colonial)

    Interior Wood Grille Profile: Ovolo (Colonial)

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
  • Interior Wood: Contemporary

    Interior Wood Grille Profile: Contemporary

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
  • Exterior Aluminum: Chamfer

    Exterior Aluminum Grille Profile: Chamfer

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
    • Removable Interior Wood with Optional Permanently Applied Exterior Grille
  • Exterior Aluminum: Contemporary

    Exterior Aluminum Grille Profile: Contemporary

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
    • Removable Interior Wood with Optional Permanently Applied Exterior Grille
  • Removable Interior Wood Grilles

    Removable Interior Wood Grille Profiles

    Ovolo or Contemporary profiles in 7/8" width

  • Finelight Grille Profiles and Widths

    Finelight Grille Profiles and Widths

    Flat or Contoured profiles in 5/8" or 1" widths

Grille Patterns

  • folding-doors-renaissance
    Renaissance
  • folding-doors-colonial
    Colonial
  • folding-doors-prairie
    Prairie
Glass

Glass Options

  • Low-E4® Tempered Glass

    Most people can enjoy optimal energy performance and comfort with Low-E / Low-E4® glass. Low-E glass reflects heat in the summer and helps keep heat inside in the winter, making this a good choice in climates where both heating and cooling costs are a concern.

  • Low-E4 HeatLock® Tempered Glass

    HeatLock® coating can be added to most of our glass options and reflects heat that likes to escape your home.

  • Low-E4 Sun Tempered Glass

    Sun glass offers outstanding thermal performance with a subtle tint that blocks out even more heat from the sun.

  • Low-E4 SmartSun™ Tempered Glass

    SmartSun™  glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun's heat and filters out 95% of harmful UV rays while letting sunlight shine through

  • Low-E4 PassiveSun Tempered Glass

    If you live in a cold climate, PassiveSun® glass allows the sun to heat your home.

  • Low-E4 SmartSun HeatLock Tempered Glass

    SmartSun™  glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun's heat and filters out 95% of harmful UV rays. HeatLock® coating added to most of our glass options and reflects heat that escapes your home.

Decorative and Specialty Glass

  • Safety Glass
    Tempered safety glass is available on all products, and comes standard on all patio doors.

    Laminated Glass
    Laminated glass is also available, for added strength, enhanced security and sound control.

    Sound-Reducing Glass
    This glass helps reduce the volume of outside noise.  Available with Low-E, SmartSun and HeatLock coatings.

    Art Glass
    Andersen® art glass is available in a wide variety of patterns adding uncommon elegance to any home style.

    Patterned Glass
    Let in light while obscuring vision and adding a unique decorative touch to your home.

    Choose from Cascade, Fern, Obscure, or Reed patterned glass for additional privacy and a decorative touch.

Sill Options

Sill Options

  • folding-standard-sill

    On-Floor Drainage Sill

    The on-floor drainage sill offers a PG40* rating for sizes up to 24' wide and 8' tall and PG30 rating for sizes up to 24' wide and 10' tall. Available in painted gray or dark bronze.

    *Performance Rating: Class SP-PG40 Size Tested 159 x 95.5 in, for a door with standard sill. DP = +40psf/-40psf.  Class SP-PG30 Size Tested 159 x 119.5 in, for a door with standard sill. DP = +30psf/-30psf.  Doors will other sill options are not rated.

  • folding-low-sill

    On-Floor Low-Threshold Sill

    The on-floor low-threshold sill option provides easy accessibility. Available in painted gray or dark bronze.

  • folding-flush-sill

    Flush Sill

    The flush sill option places the track even with the finished floor.

Product Specs

Brand Andersen
Series Folding
Interior Colors 10 wood species options plus 14 paint options (limitations apply)
Exterior Colors 50 color options plus 7 anodized finish options
Composition Aluminum-Clad Wood
Construction Type Build, Remodel, Replace
Max Panel Height 10'
Max Panel Width 48"
Profile Thickness 2-1/4"
Stile Width 3-11/16"
Track Details Low-profile sill or flush sill
Drainage Track Standard drainage sill available in bronze or gray
Performance Range PG30/PG40 (With standard sill option. PG40 to 8', PG30 to 10'. Hallmark and FBC certified.)
Hallmark Certification Yes
NFRC Certification Yes
WDMA Member Yes
Warranty Owner-2-Owner Warranty
Broken Glass Coverage No
IG Seal Failure Coverage 20-Years
