Andersen 100 Series - Fibrex Specialty Shape Windows

Andersen 100 Series Specialty Shape Windows

Andersen has the right specialty window for your home. Whether your design calls for a single window or multiple for a combination set you'll find what you need with Andersen Fibrex® windows.

The 100 Series delivers a durable, low-maintenance, and environmentally friendly product to homeowners. Fibrex® Specialty Shape windows are available in over a dozen shapes with graceful curves, elegant arches, and dramatic angles.

  • Fibrex® combines the strength and durability of wood with low-maintenance of vinyl
  • Customize with color, grilles, and patterned glass
  • Glass options make 100 Series windows ENERGY STAR certified
  • Custom sizes available
  • Owner-2-Owner Warranty

Windows Made In the USA

Request Pricing Get Brochure

100 Series Fibrex® Windows Brochure

It Worked

Your Andersen 100 Series Specialty Shape Windows Brochure is in your inbox.

  • Colors
  • Grilles
  • Glass
  • Shapes
Colors

Interior Color

  • White
  • Sandtone
  • Dark Bronze
  • Black

Exterior Color

  • White
  • Sandtone
  • Terratone
  • Dark Bronze
  • Black
  • *Black and Dark Bronze interiors are available only with Black and Dark Bronze exteriors respectively.

Grilles

Grille Types

  • Corner cut of window with grids between the glass.

    Finelight Grilles Between-the-Glass

    Grilles sit between the panes of glass for easy cleaning.

  • Corner cut of window with grids.

    Finelight Between-the-Glass With Exterior Grilles

    Permanent grilles on the exterior provide architectural detail to the window while grilles between-the-glass allow easy interior side cleaning.

  • Corner cut of window with full divided light.

    Full Divided Light

    Grilles applied to the interior and exterior of the window with aluminum spacers between the glass create an authentic look.

  • Corner cut of window with simulated divided lights.

    Simulated Divided Light

    Style your window with permanent exterior grilles and choose between permanent or removable interior grilles.

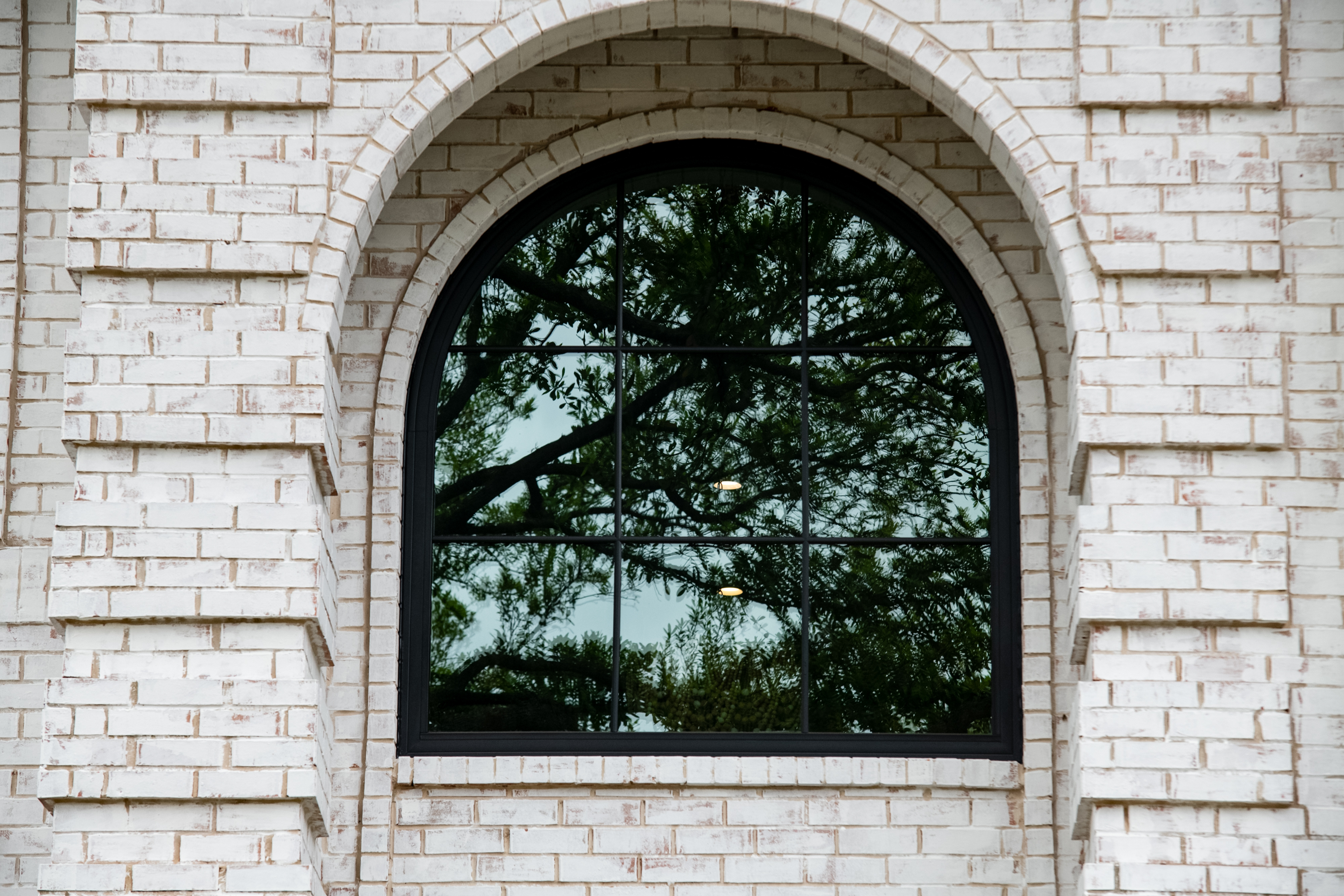

Grille Patterns

  • Colonial
  • Renaissance
  • Sunburst
  • Prairie
Glass

Glass

  • SmartSun™ Glass

    SmartSun™ glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun's heat by filtering out harmful UV rays.

    Ideal for: All Climates

    SmartSun™ with HeatLock Coating is also available on 100 Series windows. This prevents more heat from escaping your home but slightly reduces the visible light transmitted through the glass.

  • Low-E Glass

    Low-E Glass reflects heat in the summer and helps to retain interior heat in the winter.

    Ideal for: All Climates

    Low-E with HeatLock Coating is also available on 100 Series windows. This improves the U-Factor performance of the window but slightly reduces how much light comes through the glass.

  • Sun Glass

    Sun glass has excellent thermal performance. This glass has a subtle tint that blocks out more heat from the sun.

    Ideal for: Southern Climates

  • Clear Dual-Pane Glass

    Clear dual-pane glass, which offers basic thermal performance, is in situations where codes allow its use. In North Texas, clear-dual pane glass does not meet energy code.

    See local code official for requirements in your area.

  • HeatLock® Technology

    HeatLock® coating reflects heat that likes to escape your home through window glass. It can be added to most of Andersen's glass options.

Decorative and Specialty Glass

  • Safety Glass
    Tempered safety glass is available on all products, and comes standard on all patio doors.

    Sound-Reducing Glass
    This glass helps reduce the volume of outside noise.  Available with Low-E, SmartSun and HeatLock coatings.

    Patterned Glass
    Let in light while obscuring vision and adding a unique decorative touch to your home.

    Andersen decorative glass patterns: Cascade (seems like water running down a flat surface); Fern (fern leaf pattern); Obscure (bubbly/bumpy); Reed (vertical columns).

Shapes
  • Half Circle
  • Quarter Circle
  • Circle
  • Springline™
  • Arch
  • Angled Pentagon
  • Right Triangle
  • Octagon
  • Isosceles Triangle
  • Peak Pentagon
  • Trapezoid
  • Unequal Leg Arch

Product Specs

Brand Andersen
Series 100-Series
Interior Color White, Sandtone, Dark Bronze, Black
Exterior Color White, Sandtone, Terratone, Dark Bronze, Black
Composition Fibrex
Finish Matte
Uniform Sight Lines Yes
Extension Jamb Easily applicable extension jambs. Flanges consist of 8" lengths of PVC applied to the outside edges of frames with VHB tape
Translucent Film Yes
Construction Type Build, Remodel, Replace
Custom Sizes Yes, Available in custom sizes to fit most projects, including replacement.
Sizing Measured in 1/8" increments
Minimum Width 17 1/2"
Maximum Width 71 1/2" - 107 1/2"
Minimum Height 9 7/8" - 23 1/2"
Maximum Height 75 7/8" - 107 1/2"
Stucco Key Yes. The stucco key eliminates gaps that can result from the natural contraction of exterior stucco.
Frame Depth 3 1/4"
Flange Setback 1", 1 3/8"
Energy Star Certification Yes
NFRC Ratings Yes
WDMA Hallmark Certification Yes
AAMA Certification Yes
Rot Resistant Yes
Glass Warranty 20 Years
Glass Breakage Warranty No
Non-Glass Warranty 10 Years
Labor Warranty None
