5 ½” flat casing and 1 ½” sill nose shown on casement.

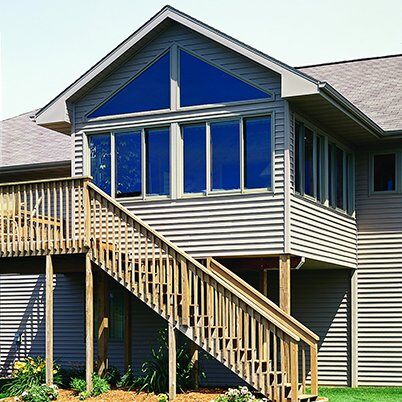

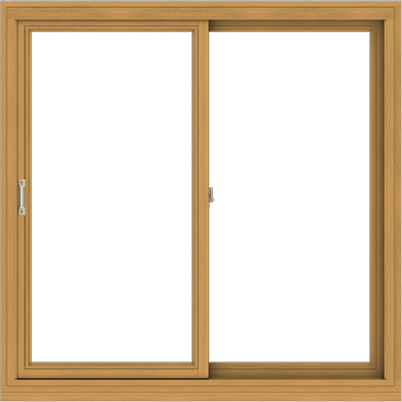

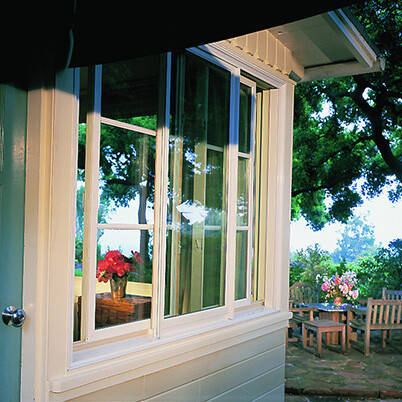

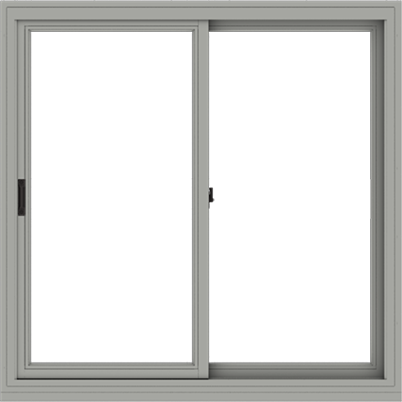

Gliding windows are the perfect choice if you want to install ventilating windows near a high-traffic area such as walkways, proches, or decks. Gliding windows won't obstruct walkways because they don't open outward.
Andersen's E-Series windows are highly customizable making it easier for you to design the home of your dreams. Trust your home to Andersen, America's premier window manufacturer.
Windows Made in the USA
Your Andersen E-Series Gliding Windows Brochure is in your inbox.
Black, White, Polished Brass, Gold, Bronze, Antique Brass, Pewter, Oil Rubbed Bronze, Satin Chrome, Bright Chrome
Black, White, Polished Brass, Gold, Bronze, Antique Brass, Pewter, Oil Rubbed Bronze, Satin Chrome, Bright Chrome
Grilles applied to the interior and exterior of the window with aluminum spacers between the glass create an authentic look.
An economical solution with traditional beauty, Andersen's Simulated Divided Light features fixed exterior and interior grilles without an internal spacer.
Andersen's removable wood grilles are installed on the interior surface. They are available with an optional surround and an optional permanently applied exterior grille.
Aluminum grilles sit between two panes of glass for easy cleaning.
Widths:
Available with:
Widths:
Available with:
Widths:
Available with:
Widths:
Available with:
Ovolo or Contemporary profiles in 7/8" width
Flat or Contoured profiles in 5/8" or 1" widths
SmartSun™ glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun's heat by filtering out harmful UV rays.
Ideal for: All Climates
SmartSun™ with HeatLock Coating is available on E-Series windows. This prevents more heat from escaping your home but slightly reduces the visible light transmitted through the glass.
Low-E Glass reflects heat in the summer and helps to retain interior heat in the winter.
Ideal for: All Climates
Low-E4® with HeatLock Coating is available on A-Series windows. This improves the U-Factor performance of the window but slightly reduces how much light comes through the glass.
Sun glass has excellent thermal performance. This glass has a subtle tint that blocks out more heat from the sun.
Ideal for: Southern Climates
If you live in a cold climate, PassiveSun® glass allows the sun to heat your home.
Ideal for: Northern Climates
An extra pane of glass helps keep more heat in and cold air out, making this our most energy-efficient glass option. Perfect for colder climates where more months of the year are spent heating the home.
Ideal for: Northern Climates
HeatLock® coating reflects heat that likes to escape your home through window glass. It can be added to most of Andersen's glass options.
Safety Glass
Tempered safety glass is available on all products, and comes standard on all patio doors.
Laminated Glass
Laminated glass is also available, for added strength, enhanced security and sound control.
Sound-Reducing Glass
This glass helps reduce the volume of outside noise. Available with Low-E, SmartSun and HeatLock coatings.
Art Glass
Andersen® art glass is available in a wide variety of patterns adding uncommon elegance to any home style.
Patterned Glass
Let in light while obscuring vision and adding a unique decorative touch to your home.
Charcoal fiberglass screen mesh fits into an aluminum frame in all 50 exterior colors. Aluminum screen mesh and wood-veneered insect screen also available as options.
Exclusive Andersen TruScene® insect screens provide over 50% more clarity than our conventional insect screens for a beautiful unobstructed view. They allow more fresh air and sunlight in, while doing a better job of keeping out small insects. Available in painted aluminum or wood-veneered options.
A subtle touch around the perfect window or door makes your view even more special.
Shown, from top to bottom:
½” and 3 ¼" Fluted Casing
11/16" and 2 ¼" Colonial Casing (WM366)
11/16" and 2 ¼" Colonial Casing (WM356)
11/16" and 2 ¼" Ranch Casing (WM324)
Add plinth blocks at the corners for just the right touch of detail.
2 ½” and 3 ½" plinth blocks shown
With our 2-, 3- and 4-tone color combinations, the sky's the limit. Mix and match up to four of our 50 exterior colors for a combination look that's all your own.
2” brick mould and 1 ½” sill nose shown on casement.
3 ½” backband & bead casing and 1 ½” sill nose shown on double-hung.
5 ½” flat casing and 1 ½” sill nose shown on casement.
2” ovolo brick mould and 1 ½” deep sill nose shown on double-hung.
3 ½” brick mould and 1 ½” deep sill nose shown on double-hung.
Brand | Andersen |
---|---|
Series | E-Series |
Exterior Color | 50 Exterior Colors and 7 Anodized Finishes with Custom Color-Match Capabilities |
2-, 3-, & 4-Tone Exteriors | Yes |
Composition | Wood, Aluminum |
Custom Wood Interiors | Pine, Oak, Walnut, Hickory, Vertical Grain Douglas Fir, Mixed Grain Douglas Fir, Maple, Alder, Mahogany, Cherry |
Interior Finish | Clear Coat, Autumn Oak, Honey, Russet, Espresso, Birch Bark Basecoat, Wheat, Golden Hickory, Cinnamon, Mocha, White Basecoat, Primed |
Uniform Sight Lines | Yes |
Extension Jamb | Pre-installed, dimensional extension jambs available in all wood species. |
Security Sensors | No |
Construction Type | Build, Remodel, Replace |
---|---|
Custom Sizes | Yes, Available in custom sizes to fit most projects, including replacement. |
Sizing | Measured in 1/8" increments. |
Minimum Width | 36" |
Maximum Width | 96" |
Minimum Height | 24" |
Maximum Height | 60" |
Jamb Depth | 5 5/8" |
Flange Setback | 1 1/16" |
Sash Construction | A compression foam-filled bulb weather strip is applied to the sill for maximum resistance to water and air infiltration. |
Power Operator Available | No |
Energy Star Certification | Yes |
---|---|
NFRC Ratings | Yes |
WDMA Hallmark Certification | Yes |
AAMA Certification | Yes |
Glass Warranty | 20 Years |
Glass Breakage Warranty | No |
Non-Glass Warranty | 10 Years |
Labor Warranty | No |
Window Opening Control Device | No |
Retractable Insect Screen | No |
