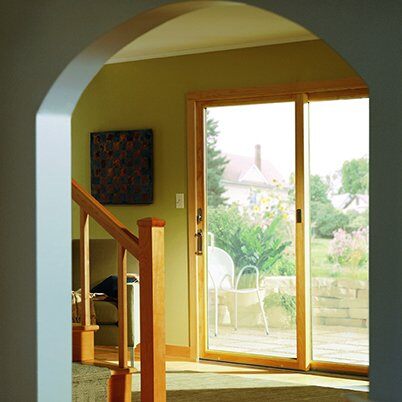

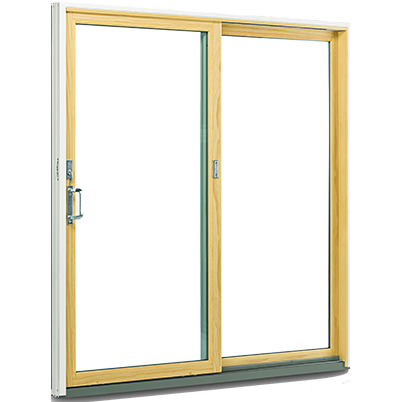

Andersen 200 Series Narroline Gliding Patio Doors

Andersen 200 Series Narroline Gliding Patio Doors

200 Series products are designed with the most popular elements in mind. Keeping your favorite features in mind results in windows and patio doors that have just the right balance of innovation, design, efficiency, and price.

Narroline gliding patio doors combine natural wood with sleek contemporary profiles to maximize views. This design is available in two- and four-panel configurations to fit virtually any size requirement.

  • Thin panel frames maximize light and views
  • Wood interior frame adds a warm touch that is protected by an exterior vinyl for durability
  • Virtually maintenance-free
  • Six exterior color and 12 hardware finish options
  • Weather-resistant construction for greater comfort and energy efficiency

Protected by Andersens Owner-2-Owner Limited Warranty

Request Pricing Get Brochure

200 Series Brochure

It Worked

Your Andersen 200 Series Narroline Gliding Patio Doors Brochure is in your inbox.

  • Features
  • Colors
  • Hardware
  • Grilles
  • Glass
  • Screens
  • More Options
Features

Narroline Gliding Patio Door Features

  • Low-Maintenance

    The Sill

    • One- and two-panel configurations have an anodized aluminum track with a stainless steel cap that resists stain, rust, and denting
    • Sills on four-panel door configurations have an attractive, water-repellant baked-on finish in a neutral gray color
    • A thermal barrier reduces conductive heat loss and limits condensation on the inside
    • Exterior portion of the sill is in anodized aluminum

    Exterior Frame

    • Covered with a rigid vinyl that maintains an attractive appearance while minimizing maintenance
    • Wood frame is treated with a water-repellant preservative for long-lasting protection and performance
    • Interior frame trim pieces are unfinished in pine
    • A flexible vinyl weatherstrip on the head and side jambs provides a positive seal between the frame and panels
  • Smooth Operation

    Dual ball-bearing rollers on door panels provide smooth gliding operation with self-contained leveling adjusters.

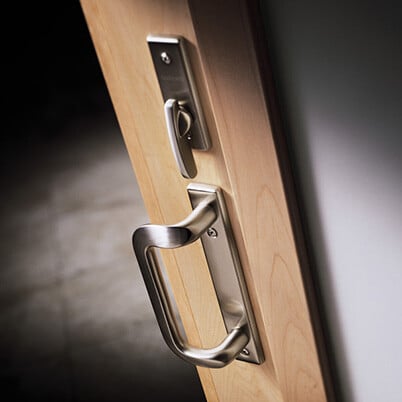

  • Enhanced Security

    Andersen® reachout locking hardware pulls the door panel snugly into the jamb for a weathertight seal and enhanced security.

Size and Panel Options

  • Single Panel (stationary)

    • Width Options: 32", 38", 50"
    • Height Options: 79-1/2", 82-3/8", 95-1/2"
  • Two Panel

    • Width Options: 59-1/4", 71-1/4", 95-1/4"
    • Height Options: 79-1/2", 82-3/8", 95-1/2"
  • Four Panel

    • Width Options: 117", 141", 189"
    • Height Options: 79-1/2", 82-3/8", 95-1/2"
Colors

Interior Colors

  • Pine
  • White

Exterior Colors

  • White
  • Sandtone
  • Terratone
  • Canvas
  • Dark Bronze
  • Black
  • Naturally occurring variations in grain, color and texture of wood make each window one-of-a-kind. All wood interiors are unfinished unless prefinished vinyl White is specified.

Hardware

Hardware Colors

  • Antique Brass
  • Black
  • Bright Brass
  • Brushed Chrome
  • Distressed Bronze
  • Distressed Nickel
  • Gold Dust
  • Oil Rubbed Bronze
  • Polished Chrome
  • Satin Nickel
  • Stone
  • White

Hardware Styles

  • Yuma®
  • Encino®
  • Anvers®
  • Newbury®
  • Covington™
  • Whitmore®
  • Albany
  • Tribeca®

Additional Options

  • Exterior Keyed Lock

    A six-pin key cylinder lock is available in styles and finishes that coordinate with hardware and allows the door to be locked and unlocked from the exterior.

  • Auxiliary Foot Lock

    Provides an extra measure of security when the door is in a locked position. Lock can be set so the door is fully closed or partially open to provide a secure venting position.

Grilles

Grilles Styles

  • Simulated Divided Light

    Style your window with permanent exterior grilles and choose between permanent or removable interior grilles.

  • Removable Interior Grille

    Removable interior wood grilles are secured via a fastener or grille clip and can be removed enabling you to easily clean the glass surface.

  • Finelight Grilles Between-the-Glass

    Grilles sit between the panes of glass for easy cleaning.

Grille Patterns

  • Colonial
  • Modified Colonial
  • hinged patio modified colonial
    Modified Colonial - Simulated Check Rail
  • Prairie
  • Short Fractional
  • Short Fractional - Simulated Check Rail
  • Tall Fractional
  • Tall Fractional - Simulated Check Rail
Glass

Glass Options

  • Low-E SmartSun™ Tempered Glass

    SmartSun™ glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun's heat by filtering out harmful UV rays.

    Ideal for: All Climates

    Low-E SmartSun™ with HeatLock Coating prevents more heat from escaping your home but slightly reduces the visible light transmitted through the glass.

  • Low-E Tempered Glass

    Low-E Glass reflects heat in the summer and helps to retain interior heat in the winter.

    Ideal for: All Climates

    Low-E with HeatLock Coating improves the U-Factor performance of the window but slightly reduces how much light comes through the glass.

  • Dual-Pane Tempered Glass

    Clear dual-pane glass, which offers basic thermal performance, is in situations where codes allow its use. In North Texas, clear-dual pane glass does not meet energy code.

    See local code official for requirements in your area.

  • HeatLock® Technology

    HeatLock® coating reflects heat that likes to escape your home through window glass. It can be added to most of Andersen's glass options.

Decorative and Specialty Glass

  • Safety Glass
    Tempered safety glass is available on all products, and comes standard on all patio doors.

    Sound-Reducing Glass
    This glass helps reduce the volume of outside noise.  Available with Low-E, SmartSun and HeatLock coatings.

    Patterned Glass
    Let in light while obscuring vision and adding a unique decorative touch to your home.

    Andersen patterned glass options include Cascade, Fern, Obscure, and Reed.

Screens

Insect Screen

  • Gliding Insect Screen

    The insect screen is available for both two-panel doors and four-panel doors. Gliding insect screens have Delrin® injection-molded bottom rollers with self-contained leveling adjusters, providing smooth operation. Interior and exterior pulls and latch are provided.

  • Retractable Insect Screen

    The retractable insect screen is installed on the exterior of the door and opens side-to-side across the width of the opening. When the insect screen is not in use, it neatly retracts into a small canister mounted on the exterior of the door. The retractable insect screen canister is available for two-panel patio doors. Please note, retractable insect screen track reduces clear opening height by 1".



More Options

Additional Door Options

  • Threshold

    An oak or maple threshold is available for finishing the interior of the sill.

  • Ramped Sill Insert

    Ramped sills provide a smooth transition from interior to exterior and can be used with a retractable insect screen, but not a gliding insect screen.

  • Sill Support

    An aluminum sill support is designed to lock into a channel under the sill and tie back into the wall. This will offer support to the outermost sill section when needed. Available in a neutral gray finish.

  • Sidelights

    Stationary units can also be selected for use as sidelights.

Smart Home

  • VeriLock® Security Sensors

    With the most advanced technology in the industry, patented VeriLock® sensors not only indicate whether your windows and patio doors are open, they even tell you if they are locked or unlocked.* No other sensors can do that.

    • Preserves Beauty.
      VeriLock® sensors are wireless to help preserve the beauty of your windows and patio doors and are available in a range of color options to complement your home décor
    • Helps Maximize Energy Efficiency.
      Windows that are closed but unlocked lose air at a rate up to 3X that of a closed and locked window**
    • Maintains Warranty.
      Other sensors require drilling which can void warranties. Our sensors require no drilling and come with their own limited warranty
    • Monitoring Options.
      Available with professional and/or self-monitoring options
    • Compatibility.
      Can be ordered with new Andersen® windows and doors, or added to products already in your home

    VeriLock® Sensor Colors

    VeriLock sensor colors are available in Black, Gold Dust, Stone, Taupe Gray, or White.
    *When properly configured and maintained with a professionally installed security system and/or self-monitoring system compatible with Honeywell® 5800 controls. See your dealer for more information.

    **Based on testing of (32) A-Series double-hung windows. Air loss through unlocked windows will vary based on window type and age, pressure differential, temperatures inside and outside the home, altitude and application.

  • Wireless Open/Closed Sensors

    When you want the peace of mind of knowing whether your windows and patio doors are open or closed, these sensors are a simple, reliable solution.

    • Preserves Beauty.
      Sleek, compact design for a clean appearance and a variety of color options to help sensors blend in with your windows, patio doors, and home décor
    • Installation.
      Easy DIY installation
    • Maintains Warranty.
      Other sensors require drilling which can void warranties. Smart Home Wireless open/closed sensors require no drilling and come with their own limited warranty
    • Monitoring Options.
      Available with professional and/or self-monitoring options
    • Compatibility.
      Available for use with all Andersen® windows and patio doors

    Wireless Open/Closed Sensor Colors

    Andersen wireless open/closed sensors are available in Dark Bronze, Sandtone, Canvas, or Andersen White.

Product Specs

Brand Andersen
Series 200 Series
Interior Colors Pine, White
Exterior Colors White, Sandtone, Terratone, Canvas, Dark Bronze, Black
Composition Wood interior with vinyl exterior
Construction Type Build, Remodel, Replace
Standard Heights 6'8", 6'11", and 8'
Standard Widths Single panel: 2'9", 3'3" and 4'3" | 2-panel: 5', 6' and 8' | 4-panel: 9'10", 11'10" and 15'10"
Custom Sizes Available in 1/8" increments
Jamb Depth 4-9/16"
Energy Star Certification Yes
NFRC Ratings Yes
WDMA Hallmark Certification Yes
AAMA Certification Yes
Glass Warranty 20-Years
Glass Breakage Warranty No
Non-Glass Warranty 10-Years
Labor Warranty No
