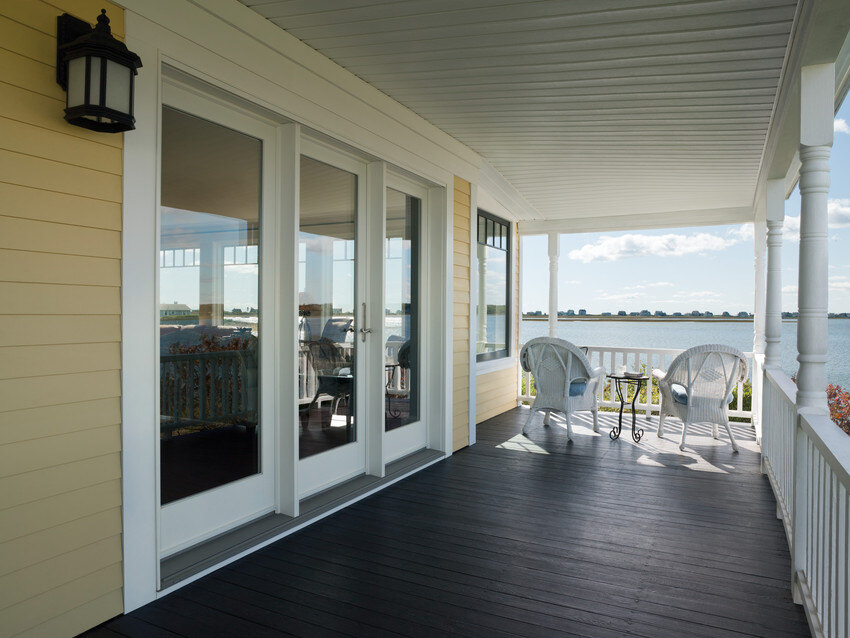

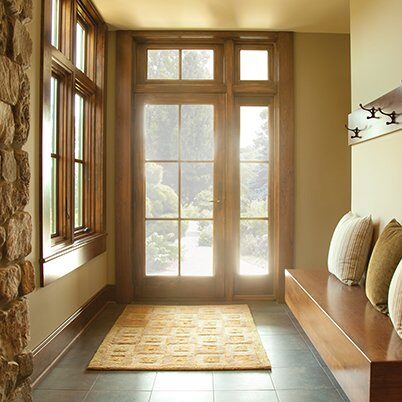

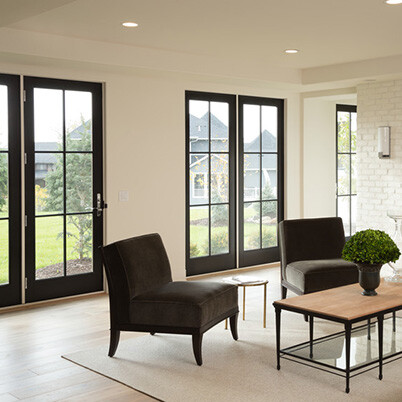

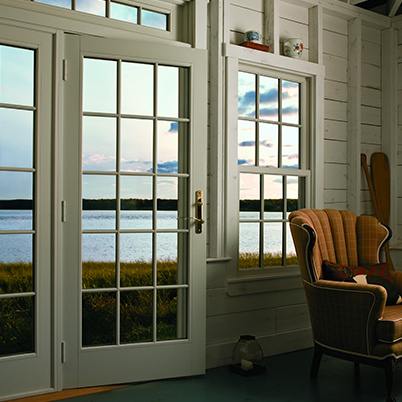

Andersen A-Series Hinged Patio Doors

Andersen A-Series Hinged Patio Doors

Create a beautiful and functional doorway for your patio with Andersen A-Series Hinged Patio doors. Choose from single-panel, 2-panel, and 3-panel configurations to bring in lots of light and ventilation. Make the most of your space by choosing between inswing or outswing operability.

A-Series doors are designed for architectural authenticity. This door style works well on any home and you can feel confident knowing your door is made from durable and energy-efficient materials.

  • Exteriors are protected by fiberglass for long-lasting performance
  • Weather-resistant construction for greater comfort
  • Variety of High-Performance Low-E4® glass options available
  • Extensive hardware selection, grilles, between-the-glass art glass, and patterned glass options
  • Virtually maintenance-free

Protected by Andersen's Owner-2-Owner Limited Warranty

Request Pricing Get Brochure

A-Series Brochure

It Worked

Your Andersen A-Series Hinged Patio Doors Brochure is in your inbox.

  • Features
  • Colors
  • Hardware
  • Grilles
  • Glass
  • Screens
  • Trim
  • More Options
Features

Features

  • Low-Maintenance

    Frame constructed with a wood core and a fiberglass exterior. This construction produces a rigid frame and a low-maintenance, durable exterior. Wood frame is treated with a water-repellent preservative for long-lasting protection and performance.

  • Adjustable Hinges

    Adjustable hinges are standard on inswing patio doors and have ball-bearing pivots for smooth, frictionless movement. Features easy horizontal and vertical adjustment, plus quick-release feature for easy panel removal. This release feature is ideal for transporting large units upstairs or to other hard-to-reach areas

  • Enhanced Security

    The multi-point locking system, with a hook bolt above and below the center deadbolt, provides a weathertight seal and enhanced security.

Size and Panel Options

  • Single Panel

    • Width Options: 24-1/8", 30-1/8", 32-1/8", 36-1/8", 38-1/8"
    • Height Options: 79-1/2", 82-3/8", 95-1/2"
  • Two Panel

    • Width Options: 47-1/4", 59-1/4", 63-1/4", 71-1/4", 75-1/4"
    • Height Options: 79-1/2", 82-3/8", 95-1/2"
  • Three Panel

    • Width Options: 106-7/16", 112-7/16", 94-7/16"
    • Height Options: 79-1/2", 82-3/8", 95-1/2"
Colors

Interior Wood (Available Unfinished or Finished)

  • Pine
  • Maple
  • Oak

Interior Wood (Available Unfinished Only)

  • Cherry
  • Mahogany
  • Vertical Grain Douglas Fir

Interior Stain Options

  • Clear Coat
  • Honey
  • Cinnamon
  • Russet
  • Mocha
  • Espresso

Painted Interiors

  • White
  • Birch Bark
  • Primed
  • Sandtone
  • Canvas
  • Dark Bronze
  • Black

Exterior Colors

  • White
  • Sandtone
  • Canvas
  • Terratone
  • Forest Green
  • Prairie Grass
  • Dove Gray
  • Dark Bronze
  • Cocoa Bean
  • Red Rock
  • Black
Hardware

Hardware Finishes

  • Antique Brass
  • Black
  • Bright Brass
  • Brushed Chrome
  • Distressed Bronze
  • Distressed Nickel
  • Gold Dust
  • Oil Rubbed Bronze
  • Polished Chrome
  • Satin Nickel
  • Satin Stainless Steel
  • Stone
  • White

Hardware Styles

  • Albany
  • Tribeca®
  • Anvers®
  • Newbury®
  • Covington™
  • Whitmore®
  • Yuma®
  • FSB® 1035
  • FSB® 1075
  • FSB® 1076
  • FSB® 1102

Additional Options

  • Exterior Keyed Lock

    A six-pin key cylinder lock is available in styles and finishes that coordinate with hardware and allows the door to be locked and unlocked from the exterior.

  • Handle Extension

    Extends interior door handle an additional 1" or 2" from the door panel to accommodate interior blinds or shades. Extenders are available in finishes that coordinate with hardware.

  • Strike Plate Extender

    Used to extend the strike plate out covering the extension jamb for single-hinge doors.

    Available for the following wall thicknesses:

    • 5 1/4"
    • 6 9/16"
    • 7 1/8"
Grilles

Grille Types

  • Full Divided Light

    Give your window an authentic look with grilles that are permanently applied to the interior and exterior of your window with an aluminum spacer between the glass.

    Spacer Option for Greater Energy Efficiency

    The Energy Spacer option is available to help A-Series products with full divided lights and SmartSun™ glass be ENERGY STAR® certified in the Northern climate zone. Its narrow design creates a 3mm gap around the spacer, helping to lower U-Factor values.

  • Simulated Divided Light

    Simulated divided light offers permanent grilles on the exterior and and a choice of permanent or removable wood interior grilles, with no spacer between the glass.

  • Removable Interior Grille

    Removable interior wood grilles are secured via a fastener or grille clip and can be removed enabling you to easily clean the glass surface.

  • Finelight Grilles Between-the-Glass

    Finelight™ grilles are suspended between the panes of glass, allowing you to easily clean both the inside and outside of your windows and doors.

Grille Patterns

  • Queen Anne
  • Diamond
  • Prairie
  • Colonial
  • Modified Colonial
  • Modified Colonial - Simulated Check Rail
  • Short Fractional
  • Short Fractional - Simulated Check Rail
  • Tall Fractional
  • Tall Fractional - Simulated Check Rail
  • Specified Equal Light
  • Custom Patterns
Glass

Glass Performance Options

  • SmartSun™ Tempered Glass

    SmartSun™ glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun's heat by filtering out harmful UV rays.

    Ideal for: All Climates

    SmartSun™ with HeatLock Coating is available on A-Series products. This prevents more heat from escaping your home but slightly reduces the visible light transmitted through the glass.

  • Low-E / Low-E4® Tempered Glass

    Low-E Glass reflects heat in the summer and helps to retain interior heat in the winter.

    Ideal for: All Climates

    Low-E4® with HeatLock Coating is available on A-Series products. This improves the U-Factor performance of the window but slightly reduces how much light comes through the glass.

  • Sun Tempered Glass

    Sun glass has excellent thermal performance. This glass has a subtle tint that blocks out more heat from the sun.

    Ideal for: Southern Climates

  • PassiveSun® Tempered Glass

    If you live in a cold climate, PassiveSun® glass allows the sun to heat your home.

    Ideal for: Northern Climates

  • Triple-Pane Tempered Glass

    Triple-Pane Glass (with Low-E coatings on two surfaces) helps keep more heat in and cold air out, making this Andersen's most energy-efficient glass option. Perfect for colder climates where more months of the year are spent heating the home.

    Ideal for:
     Northern Climates

    Select Andersen® A-Series windows are recognized as Most Efficient of ENERGY STAR® in 2018. Specific glass options apply.

  • HeatLock® Technology

    HeatLock® coating reflects heat that likes to escape your home through window glass. It can be added to most of Andersen's glass options.

Decorative and Specialty Glass

  • Speciality Glass

    Safety Glass
    Tempered safety glass is available on all products, and comes standard on all patio doors.

    Laminated Glass
    Laminated glass is also available, for added strength, enhanced security and sound control.

    Sound-Reducing Glass
    This glass helps reduce the volume of outside noise.  Available with Low-E, SmartSun and HeatLock coatings.

    Patterned Glass
    Let in light while obscuring vision and adding a unique decorative touch to your home.

    Art Glass
    Andersen® art glass is available in a wide variety of patterns adding uncommon elegance to any home style.

    Andersen patterned glass options: Cascade, Fern, Obscure, Reed

Art Glass

  • Classic Series

    The four styles included in our Classic Series panels represent major architectural design themes from the late 1800's through the 1930's. Their symmetric patterns are available in distinctive color schemes as well as colorless glass, and their caming may be finished with a gold tone, silver tone or antique patina.

  • Artisan Series

    Two designs influenced by 20th century American and European architectural schools feature striking visual patterns that evoke an extraordinary blend of art and nature.

  • Historic Series

Screens

Insect Screens

  • Gliding Insect Screen

    Patented square corner joints add considerable strength to the frame members. The insect screen is available in a conventional gliding or a premium top-hung gliding design. The conventional insect screen has bottom rollers with self-contained leveling adjusters. The premium top-hung insect screen has silicone-embedded glide hooks that hang from the top of the screen track, allowing it to glide smoothly and effortlessly. Alignment rollers on the bottom of the insect screen keep it in place on the track while the perimeter bug seal helps ensure insects stay on the outside.

  • Retractable Insect Screen

    The retractable insect screen is installed on the interior of the door across the width of the opening. When the insect screen is not in use, it neatly retracts into small canisters on each side of the door. Retractable insect screens are available for single-panel and two-panel doors with White, Gold Dust, pine, oak and maple finishes and six stains to match the interior of your door.

  • Hinged Insect Screens

    Available for single-panel hinged doors and two-panel jamb-hinged doors.

Trim

Exterior Trim

  • Exterior trim adds a finishing touch to your windows or doors and is often essential in achieving authentic architectural style. You can match the color of your windows or doors, or complement them with a different color.

Trim Colors

  • White
  • Canvas
  • Sandtone
  • Terratone
  • Forest Green
  • Dark Bronze
  • Black
  • Cocoa Bean
  • Red Rock
  • Prairie Grass
  • Dove Gray

Trim Styles

  • 2" Brick Mould
  • 3.5" Flat
  • 4.5" Flat

Head Trim Profiles

  • Decorative Drip Cap
  • 2" Cornice
  • 3-5/8" Cornice
More Options
  • Threshold

    An oak or maple threshold is available for finishing the interior of the sill.

  • a-series-gliding-hinged-door-remodeling-clip

    Remodeler Sill Clip

    Allows for easy installation in replacement applications with a finished interior floor. This clip fastens to the subfloor and the sill snaps into the clip, providing a secured structural installation.

  • Sidelights & Transoms

    Andersen Frenchwood patio door sidelights and transoms feature elegant lines that match our A-Series patio doors.

Smart Home

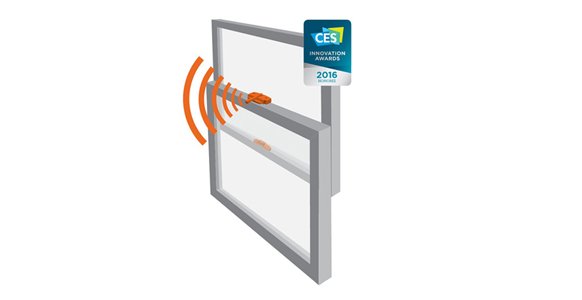

  • VeriLock® Security Sensors

    With the most advanced technology in the industry, patented VeriLock® sensors not only indicate whether your windows and patio doors are open, they even tell you if they are locked or unlocked.* No other sensors can do that.

    • Preserves Beauty.
      VeriLock® sensors are wireless to help preserve the beauty of your windows and patio doors and are available in a range of color options to complement your home décor
    • Helps Maximize Energy Efficiency.
      Windows that are closed but unlocked lose air at a rate up to 3X that of a closed and locked window**
    • Maintains Warranty.
      Other sensors require drilling which can void warranties. Our sensors require no drilling and come with their own limited warranty
    • Monitoring Options.
      Available with professional and/or self-monitoring options
    • Compatibility.
      Can be ordered with new Andersen® windows and doors, or added to products already in your home

    VeriLock® Sensor Colors

    VeriLock sensor color options: Black, Gold Dust, Stone, Taupe Gray, White

    *When properly configured and maintained with a professionally installed security system and/or self-monitoring system compatible with Honeywell® 5800 controls. See your dealer for more information.

    **Based on testing of (32) A-Series double-hung windows. Air loss through unlocked windows will vary based on window type and age, pressure differential, temperatures inside and outside the home, altitude and application.

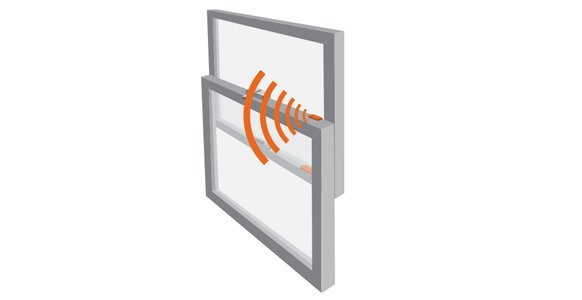

  • Wireless Open/Closed Sensors

    When you want the peace of mind of knowing whether your windows and patio doors are open or closed, these sensors are a simple, reliable solution.

    • Preserves Beauty.
      Sleek, compact design for a clean appearance and a variety of color options to help sensors blend in with your windows, patio doors, and home décor
    • Installation.
      Easy DIY installation
    • Maintains Warranty.
      Other sensors require drilling which can void warranties. Smart Home Wireless open/closed sensors require no drilling and come with their own limited warranty
    • Monitoring Options.
      Available with professional and/or self-monitoring options
    • Compatibility.
      Available for use with all Andersen® windows and patio doors

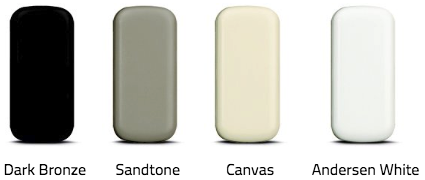

    Wireless Open/Closed Sensor Colors

    Andersen Wireless Open/Closed sensor color options: Dark Bronze, Sandtone, Canvas, Andersen White

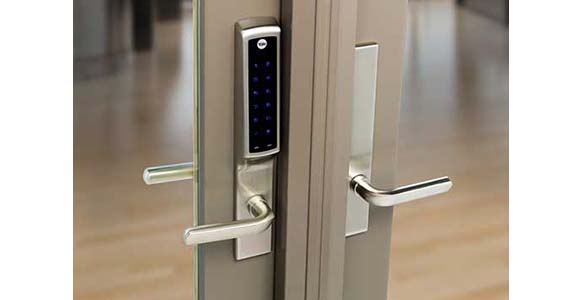

  • Yale® Assure Lock® for Andersen® patio doors

    Monitor, lock and unlock from anywhere and never worry about carrying or losing keys again. The sleek new key free lock includes Bluetooth® technology for keyless unlocking and is compatible with Z-Wave® for integration with a wide range of smart home platforms.

    • One-Touch Locking.  Lock up without the hassle of keys by simply tapping the keypad
    • Key Free.  No cylinder means no lost keys and no pick and bump break-ins
    • Battery Back-Up.  Never lose power, the lock can be energized with a 9V battery
    • VeriLock® Security Sensors.  Know whether your doors are open, closed, locked or unlocked**
    • Smart Home Integration.  Monitor, lock and unlock from anywhere

    **When properly configured and maintained with a professionally installed security system and/or self-monitoring system compatible with Honeywell® 5800 controls.

Product Specs

Brand Andersen
Series A-Series
Interior Wood Options Pine, Maple, Oak, Cherry, Mahogany, Vertical Grain Douglas Fir
Interior Stain Options Clear Coat, Honey, Cinnamon, Russet, Mocha, Espresso
Interior Paint Options White, Birch Bark, Primed, Sandtone, Canvas, Dark Bronze, Black
Exterior Colors White, Sandtone, Canvas, Terratone, Forest Green, Prairie Grass, Dove Gray, Dark Bronze, Cocoa Bean, Red Rock, Black
Composition Wood with fiberglass exterior
Construction Type Build, Remodel, Replace
Standard Heights 6'8", 6'11", 8' and 10'
Standard Widths Single panel: 2'1", 2'7", 2'9" and 3'1" |2-panel: 4', 5', 5'4" and 6'
Custom Sizes Available in 1/8" increments
Jamb Depths 4-9/16"
Swing Options Inswing or Outswing
Energy Star Certification Yes
NFRC Ratings Yes
WDMA Hallmark Certification Yes
AAMA Certification Yes
Glass Warranty 20-Years
Glass Breakage Warranty No
Non-Glass Warranty 10-Years
Labor Warranty No
