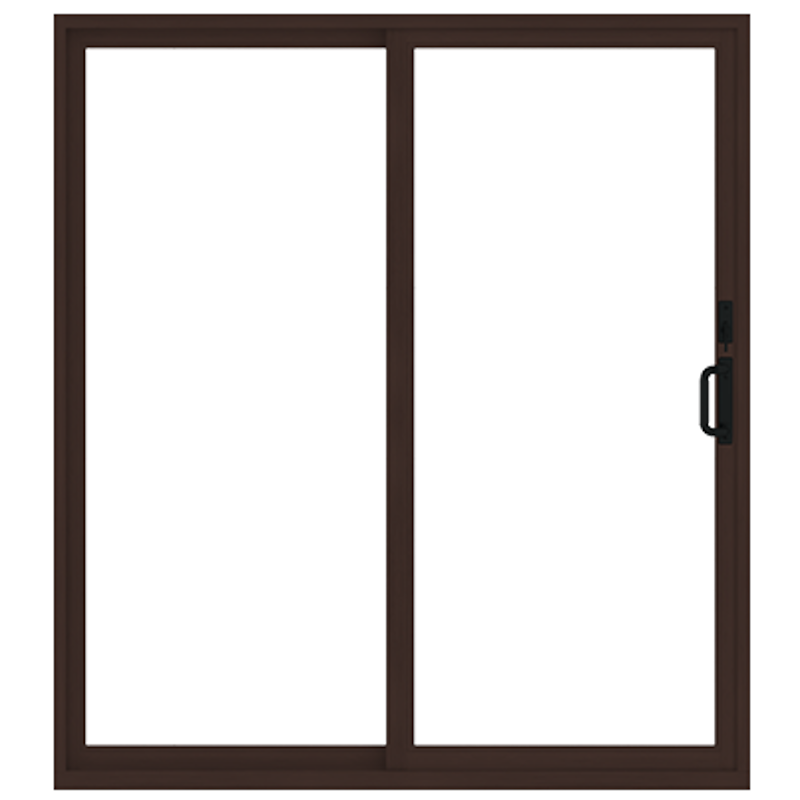

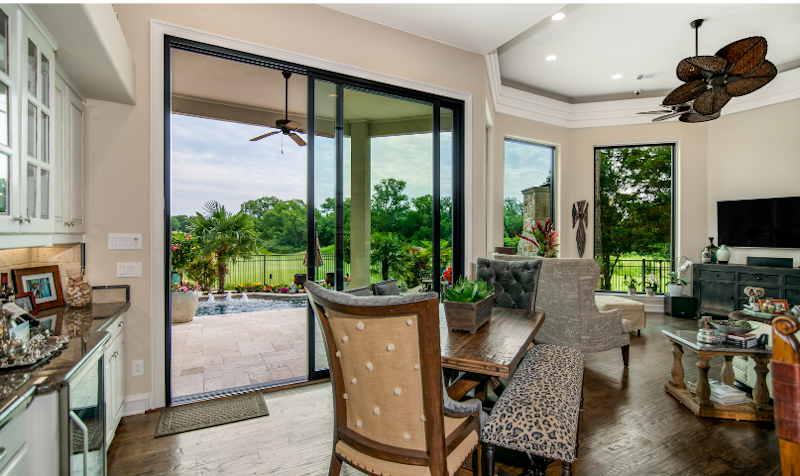

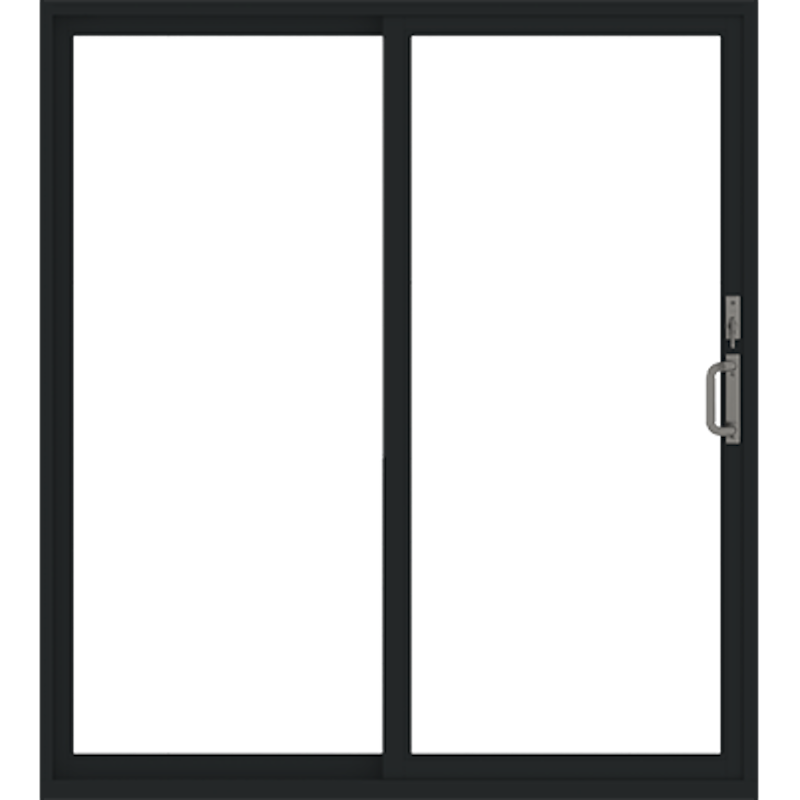

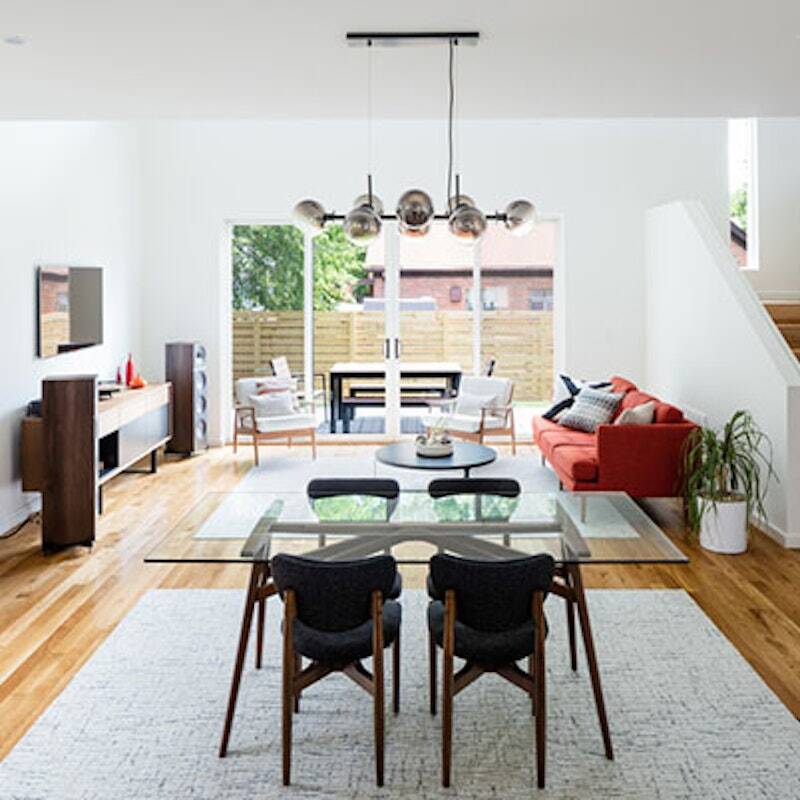

Andersen E-Series Gliding Patio Doors

Andersen E-Series Gliding Patio Doors

E-Series gliding doors provide everything you could want in a patio door system. Lots of glass for natural light, easy outdoor access, a wood frame for warmth and beauty that's covered with an aluminum exterior to resist water and seal out elements.

Gliding doors work perfectly in tight spaces and because they operate on a horizontal track, they won't interfere with your interior or exterior space. E-Series gliding doors have a thin profile for a contemporary look but customization options are endless.

  • Thinner profile for a contemporary look
  • Multi-point locking that provides a firm, secure seal
  • Tandem ball bearing rollers create smooth operation
  • Extruded aluminum exterior offers strength and durability
  • Virtually maintenance-free exterior won't crack, peel, flake, or blister

Protected by Andersen's Owner-2-Owner Limited Warranty

Request Pricing Get Brochure

E-Series Brochure

It Worked

Your Andersen E-Series Gliding Patio Doors Brochure is in your inbox.

  • Features
  • Colors
  • Hardware
  • Grilles
  • Glass
  • Screens & Blinds
  • Trim
  • More Options
Features

E-Series Gliding Patio Door Features

  • Low-Maintenance

    Select wood components are kiln dried and treated with water/insect repellent and preservative. Wood components are fitted with aluminum extrusions on the exterior.

    A durable fiberglass sill is an excellent thermal barrier. Available in beige or brown.

  • Smooth Operation

    Operating panel consists of two tandem ball bearing steel roller assemblies. Stainless steel roller assemblies are available as an option.

  • Enhanced Security

    The multi-point locking system features a unique reachout design that pulls the door panel tightly closed for a weathertight seal and enhanced security.

Size and Panel Options

  • Single Panel (stationary)

    • Width Options: 32", 38", 50"
    • Height Options: 80", 82", 96"
  • Two Panel

    • Width Options: 59-3/4", 71-3/4", 95-3/4"
    • Height Options: 80", 82", 96"
  • Four Panel

    • Width Options: 118-1/4", 142-1/4", 190-1/4"
    • Height Options: 80", 82", 96"
Colors

Interior Wood Options (Unfinished or Stained)

  • Pine
  • Maple
  • Oak
  • Cherry
  • Mahogany
  • Alder
  • Walnut
  • Hickory
  • Mixed Grain Douglas Fir
  • Vertical Grain Douglas Fir
  • Custom

Factory-Finished Stain Options

  • Clear Coat
  • Honey
  • Cinnamon
  • Russet
  • Mocha
  • Espresso
  • Golden Hickory
  • Autumn Oak
  • Wheat
  • Custom

Painted Interiors

  • White
  • Birch Bark
  • Primed
  • Sandtone
  • Canvas
  • Dark Bronze
  • Black
  • Prairie Grass
  • Terratone
  • Forest Green
  • Dove Gray
  • Cocoa Bean
  • Red Rock
  • Anodized Silver
  • Custom

Exterior Colors

  • Colony White
  • White
  • Balsa White
  • Canvas
  • Maple Syrup
  • Harvest Gold
  • Prairie Grass
  • Flagstone
  • Sandtone
  • Pebble Tan
  • Carmel
  • Terratone
  • Hot Chocolate
  • Bourbon
  • Acorn
  • Coffee Bean
  • Cocoa Bean
  • Sierra Bronze
  • Dark Bronze
  • Clay Canyon
  • Red Rock
  • Cardinal
  • Bing Cherry
  • Fire Engine Red
  • Cinnamon Toast
  • Olive
  • Sage
  • Billiard Green
  • Moss
  • Forest Green
  • Mallard Green
  • Spearmint
  • Aquamarine
  • Patina
  • Sky Blue
  • Country Blue
  • Blue Denim
  • Watercolor Blue
  • Caribbean Blue
  • Slate
  • Moody Blue
  • Stormy Blue
  • Dove Gray
  • Harbor Mist
  • Yorktown Pewter
  • Smokey Gray
  • Mystic Gray
  • Dark Ash
  • Black
  • Clear Anodized
  • Champagne Anodized
  • Light Bronze Anodized
  • Medium Bronze Anodized
  • Copper Anodized
  • Dark Bronze Anodized
  • Black Anodized
  • Custom
Hardware

Hardware Finishes

  • Distressed Bronze
  • Distressed Nickel
  • Bright Brass
  • Antique Brass
  • Oil Rubbed Bronze
  • Satin Nickel
  • Brushed Chrome
  • Polished Chrome
  • Black
  • Gold Dust
  • Stone
  • White

Hardware Styles

  • Yuma®
  • Encino®
  • Anvers®
  • Newbury®
  • Covington™
  • Whitmore®
  • Albany
  • Tribeca®

Additional Options

  • Security Footbolts

    An enhanced footbolt is discreetly positioned on the side of the panel. Footbolt provides an extra measure of security when door is in locked position. Available in finish options to complement handle sets.

Grilles

Grille Types

  • Full Divided Light

    Grilles are permanently applied to the interior and exterior of the window with a spacer between the glass.

  • Simulated Divided Light

    Fixed exterior and interior grilles without an internal spacer.

  • Removable Interior Wood Grilles

    Removable wood grilles are installed on the interior surface. Available with an optional permanently applied exterior grille.

  • Finelight Grilles-Between-the-Glass

    Aluminum grilles between two panes of glass.

Grille Profiles

  • Interior Wood: Ovolo (Colonial)

    Ovolo grille profile shape and measurements

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
  • Interior Wood: Contemporary

    contemporary grille profile shape and measurements

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
  • Exterior Aluminum: Chamfer

    Chamfer grille profile and measurements

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
    • Removable Interior Wood with Optional Permanently Applied Exterior Grille
  • Exterior Aluminum: Contemporary

    Contemporary grille profile and measurements

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
    • Removable Interior Wood with Optional Permanently Applied Exterior Grille
  • Removable Interior Wood Grilles

    removable wood grille profiles

    Ovolo or Contemporary profiles in 7/8" width

  • Finelight Grille Profiles and Widths

    finelight grille profiles and widths

    Flat or Contoured profiles in 5/8" or 1" widths

Grille Patterns

  • Colonial
  • Modified Colonial
  • Prairie
  • Short Fractional
  • Diamond
  • Custom Patterns
Glass

Glass Performance Options

  • SmartSun Tempered Glass

    SmartSun™ glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun's heat by filtering out harmful UV rays.

    Ideal for: All Climates

    SmartSun™ with HeatLock Coating is available on E-Series products. This prevents more heat from escaping your home but slightly reduces the visible light transmitted through the glass.

  • Low-E / Low-E4® Tempered Glass

    Low-E Glass reflects heat in the summer and helps to retain interior heat in the winter.

    Ideal for: All Climates

    Low-E4® with HeatLock Coating is available on E-Series products. This improves the U-Factor performance of the window but slightly reduces how much light comes through the glass.

  • Sun Tempered Glass

    Sun glass has excellent thermal performance. This glass has a subtle tint that blocks out more heat from the sun.

    Ideal for: Southern Climates

  • PassiveSun® Tempered Glass

    If you live in a cold climate, PassiveSun® glass allows the sun to heat your home.

    Ideal for: Northern Climates

  • Triple-Pane Tempered Glass

    An extra pane of glass helps keep more heat in and cold air out, making this our most energy-efficient glass option. Perfect for colder climates where more months of the year are spent heating the home.

    Ideal for:
     Northern Climates

  • HeatLock® Technology

    HeatLock® coating reflects heat that likes to escape your home through window glass. It can be added to most of Andersen's glass options.

Decorative and Specialty Glass

  • Safety Glass
    Tempered safety glass is available on all products, and comes standard on all patio doors.

    Laminated Glass
    Laminated glass is also available, for added strength, enhanced security and sound control.

    Sound-Reducing Glass
    This glass helps reduce the volume of outside noise. Available with Low-E, SmartSun and HeatLock coatings.

    Art Glass
    Andersen® art glass is available in a wide variety of patterns adding uncommon elegance to any home style.

    Patterned Glass
    Let in light while obscuring vision and adding a unique decorative touch to your home.

    Andersen pattern glass options include: Cascade, Fern, Obscure, Reed.

Screens & Blinds

Insect Screens

  • Top-Hung Gliding Insect Screen

    Charcoal fiberglass screen mesh fits into an aluminum frame in 50 exterior colors. Aluminum screen mesh is also available.

  • Concealed Insect Screens

    The concealed insect screen has charcoal fiberglass panels. Insect screen retracts when not needed, providing an unobstructed view through the glass. Available in 50 exterior colors.

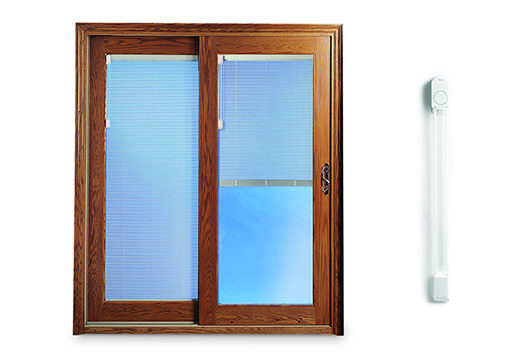

Blinds-Between-the-Glass

  • What could be more convenient than blinds or shades between the panes of glass? Minimal cleaning and no worry about damage. It's simply a fitting way to put privacy at your fingertips.

    • 5/8" aluminum slat blinds are located between the panes of insulated glass, protected from dust & damage
    • Glass is easy to clean without the need to move the blinds
    • Blinds are magnetically controlled and can be tilted or raised and lowered with one cord

    Blind Colors

    Andersen Blinds-Between-the-Glass color options include: Almond, Tan, White

Trim

Interior Trim

  • Wood Casings

    A subtle touch around the perfect window or door makes your view even more special.

    Pictured, from top to bottom:

    ½” and 3 ¼" Fluted Casing

    11/16" and 2 ¼" Colonial Casing (WM366)

    11/16" and 2 ¼" Colonial Casing (WM356)

    11/16" and 2 ¼" Ranch Casing (WM324)

  • Plinth Blocks

    Add plinth blocks at the corners for just the right touch of detail.

    2 ½” and 3 ½" plinth blocks shown

Exterior Trim

  • 2-, 3-, & 4- Tone Exteriors

    With our 2-, 3- and 4-tone color combinations, the sky's the limit. Mix and match up to four of our 50 exterior colors for a combination look that's all your own.

  • 2" Adjustable Brick Mould

    Mould is shown on hinged inswing patio door.

  • 3 1/2" Flat Casing

    Flat casing shown on hinged inswing patio door.

More Options

Smart Home

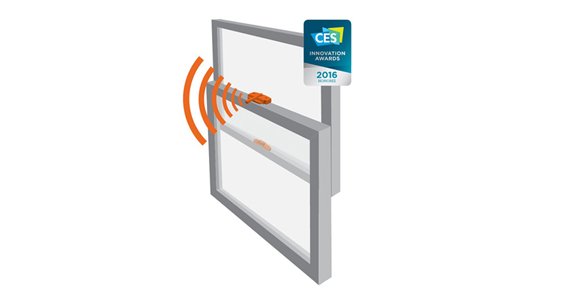

  • VeriLock® Security Sensors

    With the most advanced technology in the industry, patented VeriLock® sensors not only indicate whether your windows and patio doors are open, they even tell you if they are locked or unlocked.* No other sensors can do that.

    • Preserves Beauty.
      VeriLock® sensors are wireless to help preserve the beauty of your windows and patio doors and are available in a range of color options to complement your home décor
    • Helps Maximize Energy Efficiency.
      Windows that are closed but unlocked lose air at a rate up to 3X that of a closed and locked window**
    • Maintains Warranty.
      Other sensors require drilling which can void warranties. Our sensors require no drilling and come with their own limited warranty
    • Monitoring Options.
      Available with professional and/or self-monitoring options
    • Compatibility.
      Can be ordered with new Andersen® windows and doors, or added to products already in your home

    VeriLock® Sensor Colors

    Andersen VeriLock sensor color options: Black, Gold Dust, Stone, Taupe Gray, White

    *When properly configured and maintained with a professionally installed security system and/or self-monitoring system compatible with Honeywell® 5800 controls. See your dealer for more information.

    **Based on testing of (32) A-Series double-hung windows. Air loss through unlocked windows will vary based on window type and age, pressure differential, temperatures inside and outside the home, altitude and application.

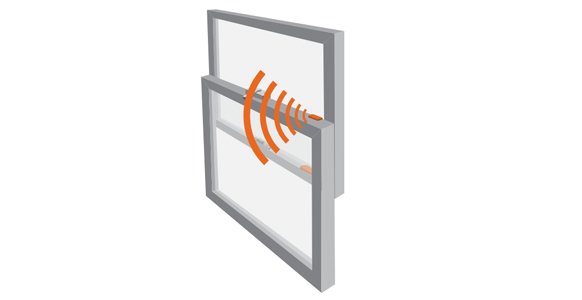

  • Wireless Open/Closed Sensors

    When you want the peace of mind of knowing whether your windows and patio doors are open or closed, these sensors are a simple, reliable solution.

    • Preserves Beauty.
      Sleek, compact design for a clean appearance and a variety of color options to help sensors blend in with your windows, patio doors, and home décor
    • Installation.
      Easy DIY installation
    • Maintains Warranty.
      Other sensors require drilling which can void warranties. Smart Home Wireless open/closed sensors require no drilling and come with their own limited warranty
    • Monitoring Options.
      Available with professional and/or self-monitoring options
    • Compatibility.
      Available for use with all Andersen® windows and patio doors

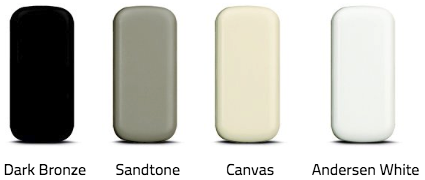

    Wireless Open/Closed Sensor Colors

    Andersen Wireless Open/Closed sensor colors: Dark Bronze, Sandtone, Canvas, Andersen White

Product Specs

Brand Andersen
Series E-Series
Interior Wood Options Pine, Maple, Oak, Cherry, Mahogany, Alder, Walnut, Hickory, Mixed Grain Douglas Fir, Vertical Grain Douglas Fir
Interior Stain Options 9+ stain options available
Interior Paint Options White, Birch Bark, Primed, Sandtone, Canvas, Dark Bronze, Black, Prairie Grass, Terratone, Forest Green, Dove Gray, Cocoa Bean, Red Rock, Anodized Silver, Custom
Exterior Colors 50 standard colors +7 anodized finishes. Custom colors available.
Composition Wood with aluminum exterior
Construction Type Build, Remodel, Replace
Standard Heights 6'8", 6'10" and 8'
Standard Widths Single panel: 2'8", 3'2" and 4'2" | 2-panel: 5', 6' and 8‘ | 4-panel: 9'10 3/4", 11'10 3/4" and 15'10 3/4"
Custom Sizes Available in 1/8" increments
Jamb Depth 4-9/16"
Energy Star Certification Yes
NFRC Ratings Yes
WDMA Hallmark Certification Yes
AAMA Certification Yes
Glass Warranty 20-Years
Glass Breakage Warranty No
Non-Glass Warranty 10-Years
Labor Warranty No
