Contemporary Andersen E-Series Hinged Patio Doors

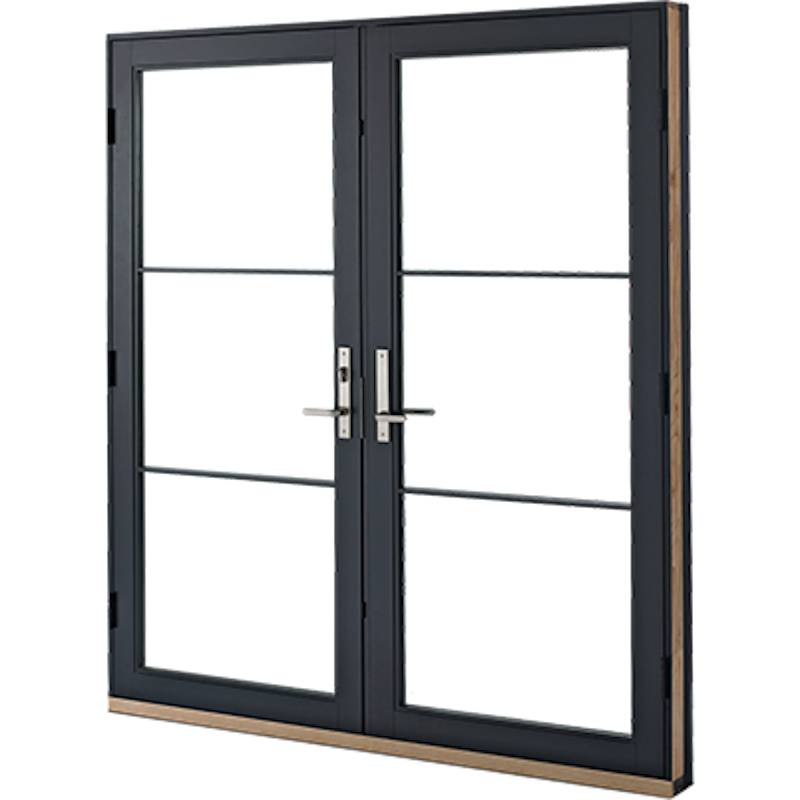

Andersen E-Series Hinged Patio Doors

E-Series Hinged Patio doors are the perfect choice for homeowners and builders who appreciate high-quality craftsmanship. This door system is a wood interior and aluminum exterior construction providing your home with a beautiful and durable product inside and out.

You can fully customize this door system to perfectly suit your home. Choose from contemporary or traditional panel styles and among endless color, stain, and hardware options.

  • Available in Contemporary panels or Traditional panels
  • Standard sizes available in single panel or two-panel configurations. Custom sizes available.
  • Wood doors protected by an aluminum exterior that won't crack, peel, flake, or blister
  • Fully customizable with a wide selection of hardware, wood species, and color options
  • Weather-resistant for higher energy efficiency

Protected by Andersen's Owner-2-Owner Limited Warranty

Request Pricing Get Brochure

E-Series Brochure

It Worked

Your Andersen E-Series Hinged Patio Doors Brochure is in your inbox.

  • Features
  • Colors
  • Hardware
  • Grilles
  • Glass
  • Panels
  • Trim
  • More
Features

E-Series Hinged Patio Door Features

  • Low-Maintenance

    Select wood components are kiln dried, and treated with water/insect repellent and preservative. Wood components are fitted with aluminum extrusions on the exterior.

    Sills have built-in drainage channel that allows water to drain away from the interior of the door. A polyurethane thermal barrier helps reduce heat loss.

  • Built-In Drainage

    Premium grade aluminum inswing sill with an oak threshold. Sills have a built-in drainage channel that allows water to drain away from the interior of the door. A top plate is removable for easy channel cleaning. A polyurethane thermal barrier helps reduce heat loss. Available in mill or dark bronze anodized finish.

  • Enhanced Security

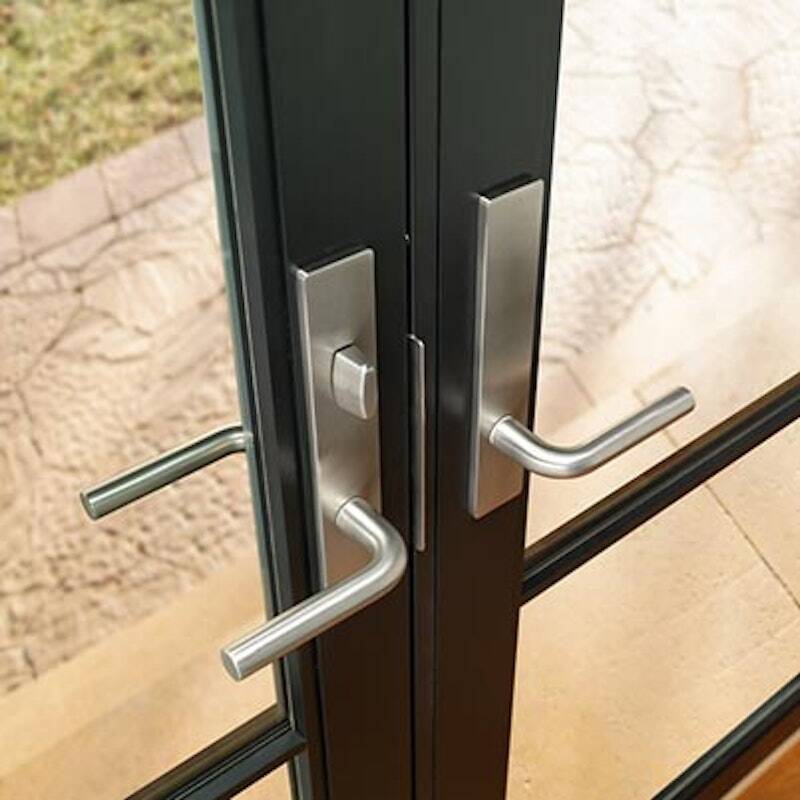

    Autolatch® stainless steel multi-point locking system locks the panel in three positions to provide a secure, weather-resistant entry system. Some door heights lock the panel in four positions.

Colors

Interior Wood Options (Unfinished or Stained)

  • Pine
  • Maple
  • Oak
  • Cherry
  • Mahogany
  • Alder
  • Walnut
  • Hickory
  • Mixed Grain Douglas Fir
  • Vertical Grain Douglas Fir
  • Custom

Factory-Finished Stain Options

  • Clear Coat
  • Honey
  • Cinnamon
  • Russet
  • Mocha
  • Espresso
  • Golden Hickory
  • Autumn Oak
  • Wheat
  • Custom

Painted Interiors

  • Colony White
  • Birch Bark
  • Primed
  • Sandtone
  • Canvas
  • Dark Bronze
  • Black
  • Prairie Grass
  • Terratone
  • Forest Green
  • Dove Gray
  • Cocoa Bean
  • Red Rock
  • Anodized Silver
  • Custom

Exterior Colors

  • Colony White
  • White
  • Balsa White
  • Canvas
  • Maple Syrup
  • Harvest Gold
  • Prairie Grass
  • Flagstone
  • Sandtone
  • Pebble Tan
  • Carmel
  • Terratone
  • Hot Chocolate
  • Bourbon
  • Acorn
  • Coffee Bean
  • Cocoa Bean
  • Sierra Bronze
  • Dark Bronze
  • Clay Canyon
  • Red Rock
  • Cardinal
  • Bing Cherry
  • Fire Engine Red
  • Cinnamon Toast
  • Olive
  • Sage
  • Billiard Green
  • Moss
  • Forest Green
  • Mallard Green
  • Spearmint
  • Aquamarine
  • Patina
  • Sky Blue
  • Country Blue
  • Blue Denim
  • Watercolor Blue
  • Caribbean Blue
  • Slate
  • Moody Blue
  • Stormy Blue
  • Dove Gray
  • Harbor Mist
  • Yorktown Pewter
  • Smokey Gray
  • Mystic Gray
  • Dark Ash
  • Black
  • Clear Anodized
  • Champagne Anodized
  • Light Bronze Anodized
  • Medium Bronze Anodized
  • Copper Anodized
  • Dark Bronze Anodized
  • Black Anodized
  • Custom
Hardware

Hardware Finishes

  • Antique Brass
  • Black
  • Bright Brass
  • Brushed Chrome
  • Distressed Bronze
  • Distressed Nickel
  • Gold Dust
  • Oil Rubbed Bronze
  • Polished Chrome
  • Satin Nickel
  • Satin Stainless Steel
  • Stone
  • White

Hardware Styles

  • Albany
  • Tribeca®
  • Anvers®
  • Newbury®
  • Covington™
  • Whitmore®
  • Encino®
  • Yuma®
  • FSB® 1035
  • FSB® 1075
  • FSB® 1076
  • FSB® 1102
Grilles

Grille Types

  • Full Divided Light

    Grilles are permanently applied to the interior and exterior of the window with a spacer between the glass.

  • Simulated Divided Light

    Fixed exterior and interior grilles without an internal spacer.

  • Removable Interior Wood Grilles

    Removable wood grilles are installed on the interior surface. Available with an optional permanently applied exterior grille.

  • Finelight Grilles-Between-the-Glass

    Aluminum grilles between two panes of glass.

Grille Profiles

  • Interior Wood: Ovolo (Colonial)

    Interior Wood: Ovolo (Colonial)

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
  • Interior Wood: Contemporary

    Interior Wood: Contemporary

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
  • Exterior Aluminum: Chamfer

    Exterior Aluminum: Chamfer

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
    • Removable Interior Wood with Optional Permanently Applied Exterior Grille
  • Exterior Aluminum: Contemporary

    Exterior Aluminum: Contemporary

    Widths:

    • 5/8"
    • 7/8"
    • 1 1/8"
    • 1 1/2"
    • 2 1/4"

    Available with:

    • Full Divided Light
    • Simulated Divided Light
    • Removable Interior Wood with Optional Permanently Applied Exterior Grille
  • Removable Interior Wood Grilles

    Removable Interior Wood Grilles

    Ovolo or Contemporary profiles in 7/8" width

  • Finelight Grille Profiles and Widths

    Finelight Grille Profiles and Widths

    Flat or Contoured profiles in 5/8" or 1" widths

Grille Patterns

  • Colonial
  • Modified Colonial
  • Prairie
  • Short Fractional
  • Diamond
  • Custom Patterns
Glass

Glass Performance Options

  • SmartSun Tempered Glass

    SmartSun™ glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun's heat by filtering out harmful UV rays.

    Ideal for: All Climates

    SmartSun™ with HeatLock Coating is available on E-Series products. This prevents more heat from escaping your home but slightly reduces the visible light transmitted through the glass.

  • Low-E / Low-E4® Tempered Glass

    Low-E Glass reflects heat in the summer and helps to retain interior heat in the winter.

    Ideal for: All Climates

    Low-E4® with HeatLock Coating is available on E-Series products. This improves the U-Factor performance of the window but slightly reduces how much light comes through the glass.

  • Sun Tempered Glass

    Sun glass has excellent thermal performance. This glass has a subtle tint that blocks out more heat from the sun.

    Ideal for: Southern Climates



  • PassiveSun® Tempered Glass

    If you live in a cold climate, PassiveSun® glass allows the sun to heat your home.

    Ideal for: Northern Climates

  • Triple-Pane Tempered Glass

    An extra pane of glass helps keep more heat in and cold air out, making this our most energy-efficient glass option. Perfect for colder climates where more months of the year are spent heating the home.

    Ideal for:
     Northern Climates

  • HeatLock® Technology

    HeatLock® coating reflects heat that likes to escape your home through window glass. It can be added to most of Andersen's glass options.

Decorative and Specialty Glass

  • Safety Glass
    Tempered safety glass is available on all products, and comes standard on all patio doors.

    Laminated Glass
    Laminated glass is also available, for added strength, enhanced security and sound control.

    Sound-Reducing Glass
    This glass helps reduce the volume of outside noise. Available with Low-E, SmartSun and HeatLock coatings.

    Art Glass
    Andersen® art glass is available in a wide variety of patterns adding uncommon elegance to any home style.

    Patterned Glass
    Let in light while obscuring vision and adding a unique decorative touch to your home.

    Andersen patterned glass options: Cascade, Fern, Obscure, Reed

Panels

Size & Panel Options

  • Single Panel

    • Width Options: 24-1/2", 30-1/2", 32-1/2", 36-1/2", 38-1/2"
    • Height Options: 80", 82", 84", 87", 96", 99"
  • Two Panel

    • Width Options: 48", 60", 64", 72", 76"
    • Height Options: 80", 82", 84", 87", 96", 99"

Panel Styles

  • Traditional Panel

    • 8" Bottom Rail Height
  • Traditional Panel

    • 12" Bottom Rail Height
  • Contemporary Panel

    • 3-11/16" Rails & Stiles
  • Contemporary Panel

    • 4-11/16" Rails & Stiles

Door Panel with Mid-Rail Options

    • 4 11/16" Stiles & Top Rail
    • 5 5/16" Mid-Rail
    • 8" Bottom Rail
    • 4 11/16" Stiles & Top Rail
    • 5 5/16" Mid-Rail
    • 8" Bottom Rail
    • 4 11/16" Stiles & Top Rail
    • 5 5/16" Mid-Rail
    • 12" Bottom Rail
    • 4 11/16" Stiles & Top Rail
    • 5 5/16" Mid-Rail
    • 12" Bottom Rail

Door Panel with Raised Panel Options

    • 4 11/16" Stiles & Top Rail
    • 5 5/16" Mid-Rail
    • 8" Bottom Rail
    • 4 11/16" Stiles & Top Rail
    • 5 5/16" Mid-Rail
    • 8" Bottom Rail

Sidelight Panel Options

    • 2 3/4" Stiles
    • 4 11/16" Top Rail
    • 8" Bottom Rail
    • 2 3/4" Stiles
    • 4 11/16" Top Rail
    • 12" Bottom Rail
    • 2 3/4" Stiles
    • 4 11/16" Top Rail & Bottom Rail
    • 2 3/4" Stiles
    • 4 11/16" Top Rail
    • 5 5/16" Mid-Rail
    • 8" Bottom Rail
    • 2 3/4" Stiles
    • 4 11/16" Top Rail
    • 5 5/16" Mid-Rail
    • 8" Bottom Rail
    • 2 3/4" Stiles
    • 4 11/16" Top Rail
    • 5 5/16" Mid-Rail
    • 12" Bottom Rail
    • 2 3/4" Stiles
    • 4 11/16" Top Rail
    • 5 5/16" Mid-Rail
    • 12" Bottom Rail
    • 2 3/4" Stiles
    • 4 11/16" Top Rail
    • 5 5/16" Mid-Rail
    • 8" Bottom Rail
    • 2 3/4" Stiles
    • 4 11/16" Top Rail
    • 5 5/16" Mid-Rail
    • 8" Bottom Rail

Transom Panel Options

    • 4 11/16" Stiles
    • 2 3/4" Rails
    • 2 3/4" Stiles & Rails
    • 4 11/16" Stiles & Rails
    • 2 3/4" Stiles
    • 4 11/16" Rails
    • 3 11/16" Stiles & Rails
Trim

Exterior Trim

  • Designed to add depth and traditional appeal, our exterior trim options extend outward from the door frame, casting a shadow line consistent with true historical applications. Choose from our extended selection of flat and profiled casings, brick mould casings and sill nosings. Match or contrast the trim with your windows and doors in any of our 50 exterior colors, custom colors and anodized finishes.

Trim

  • Wood Casings

    A subtle touch around the perfect window or door makes your view even more special.

    Shown above, from top to bottom:

    ½” and 3 ¼" Fluted Casing

    11/16" and 2 ¼" Colonial Casing (WM366)

    11/16" and 2 ¼" Colonial Casing (WM356)

    11/16" and 2 ¼" Ranch Casing (WM324)

  • Plinth Blocks

    Add plinth blocks at the corners for just the right touch of detail.

    2 ½” and 3 ½" plinth blocks shown

  • 2-, 3- & 4-Tone Exteriors

    With Andersen's 2-, 3- and 4-tone color combinations, the sky's the limit. Mix and match up to four of our 50 exterior colors for a combination look that's all your own.

  • 2” adjustable brick mould shown on hinged inswing patio door.

  • 3 ½” flat casing shown on hinged inswing patio door.

More

Insect Screens

  • Concealed Insect Screens

    Concealed, retractable insect screen has charcoal fiberglass panels. Available for inswing single or double door units. Insect screen rolls out when needed and retracts into concealed housing when not in use. Available in 50 exterior colors.

    Concealed insect screens for outswing doors are field applied to the interior of the door. Available in five colors including white, almond, desert sand, bronze and black.

  • Swinging Insect Screens (Inswing only)

    Charcoal fiberglass screen mesh fits into an aluminum frame in 50 exterior colors. Provided with a black lockable latch and automatic closer for smooth operation. Available in single or multiple door units. Aluminum screen mesh is also available.

  • Top-Hung Gliding Insect Screens

    Charcoal fiberglass screen mesh fits into an aluminum frame available in 50 exterior colors. Aluminum screen mesh is also available as an option.

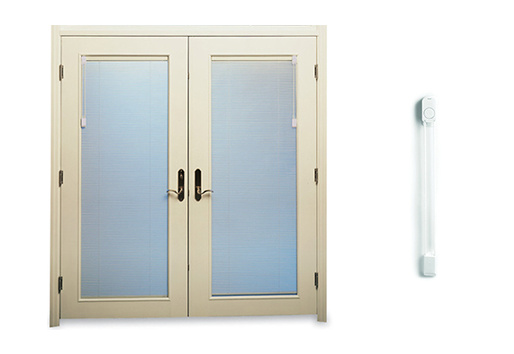

Blinds-Between-The-Glass

  • What could be more convenient than blinds or shades between the panes of glass? Minimal cleaning and no worry about damage. It's simply a fitting way to put privacy at your fingertips.

    • 5/8" aluminum slat blinds are located between the panes of insulated glass, protected from dust & damage
    • Glass is easy to clean without the need to move the blinds
    • Blinds are magnetically controlled and can be tilted or raised and lowered with one cord

    Blind Colors

    Andersen blinds between the glass color options: Almond, Tan, White

Smart Home

  • VeriLock® Security Sensors

    With the most advanced technology in the industry, patented VeriLock® sensors not only indicate whether your windows and patio doors are open, they even tell you if they are locked or unlocked.* No other sensors can do that.

    • Preserves Beauty.
      VeriLock® sensors are wireless to help preserve the beauty of your windows and patio doors and are available in a range of color options to complement your home décor
    • Helps Maximize Energy Efficiency.
      Windows that are closed but unlocked lose air at a rate up to 3X that of a closed and locked window**
    • Maintains Warranty.
      Other sensors require drilling which can void warranties. Our sensors require no drilling and come with their own limited warranty
    • Monitoring Options.
      Available with professional and/or self-monitoring options
    • Compatibility.
      Can be ordered with new Andersen® windows and doors, or added to products already in your home

    VeriLock® Sensor Colors

    VeriLock sensor color options: Black, Gold Dust, Stone, Taupe Gray, White

    *When properly configured and maintained with a professionally installed security system and/or self-monitoring system compatible with Honeywell® 5800 controls. See your dealer for more information.

    **Based on testing of (32) A-Series double-hung windows. Air loss through unlocked windows will vary based on window type and age, pressure differential, temperatures inside and outside the home, altitude and application.

  • Wireless Open/Closed Sensors

    When you want the peace of mind of knowing whether your windows and patio doors are open or closed, these sensors are a simple, reliable solution.

    • Preserves Beauty.
      Sleek, compact design for a clean appearance and a variety of color options to help sensors blend in with your windows, patio doors, and home décor
    • Installation.
      Easy DIY installation
    • Maintains Warranty.
      Other sensors require drilling which can void warranties. Smart Home Wireless open/closed sensors require no drilling and come with their own limited warranty
    • Monitoring Options.
      Available with professional and/or self-monitoring options
    • Compatibility.
      Available for use with all Andersen® windows and patio doors

    Wireless Open/Closed Sensor Colors

    Andersen Wireless Open/Closed sensor color options: Dark Bronze, Sandtone, Canvas, Andersen White

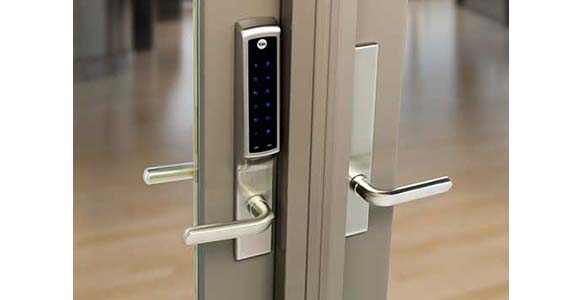

  • Yale® Assure Lock® for Andersen® patio doors

    Monitor, lock and unlock from anywhere and never worry about carrying or losing keys again. The sleek new key free lock includes Bluetooth® technology for keyless unlocking and is compatible with Z-Wave® for integration with a wide range of smart home platforms.

    • One-Touch Locking.  Lock up without the hassle of keys by simply tapping the keypad
    • Key Free.  No cylinder means no lost keys and no pick and bump break-ins
    • Battery Back-Up.  Never lose power, the lock can be energized with a 9V battery
    • VeriLock® Security Sensors.  Know whether your doors are open, closed, locked or unlocked**
    • Smart Home Integration.  Monitor, lock and unlock from anywhere

    **When properly configured and maintained with a professionally installed security system and/or self-monitoring system compatible with Honeywell® 5800 controls.

Product Specs

Brand Andersen
Series E-Series
Interior Wood Options Pine, Maple, Oak, Cherry, Mahogany, Alder, Walnut, Hickory, Mixed Grain Douglas Fir, Vertical Grain Douglas Fir
Interior Stain Options 9+ stain options available
Interior Paint Options White, Birch Bark, Primed, Sandtone, Canvas, Dark Bronze, Black, Prairie Grass, Terratone, Forest Green, Dove Gray, Cocoa Bean, Red Rock, Anodized Silver, Custom
Exterior Colors 50 standard colors +7 anodized finishes. Custom colors available.
Composition Wood with aluminum exterior
Construction Type Build, Remodel, Replace
Standard Heights 6'8", 6'10", 7', 7'3", 8' and 8'3"
Standard Widths Single panel: 2'1", 2'7", 2'9", 3'1" and 3'3" 2-panel: 4', 5', 5'4", 6' and 6'4"
Custom Sizes Available in 1/8" increments
Jamb Depth 4-9/16"
Swing Option Inswing or Outswing
Energy Star Certification Yes
NFRC Ratings Yes
WDMA Hallmark Certification Yes
AAMA Certification Yes
Glass Warranty 20-Years
Glass Breakage Warranty No
Non-Glass Warranty 10-Years
Labor Warranty No

Request Pricing

Your Contact Details
Products I'm Interested In:
  • Windows
  • Doors
  • Siding
  • Roofing
Subscribe to our blog
  • Subscribe to our blog
FREE ESTIMATE
