Weiland Pivot Doors
Large panels, contemporary vibes, and dramatic openings have helped make pivot doors popular in recent years. Weiland pivot doors are designed for dependability and smooth operation.
-
Made in USA
-
Energy Star certified to help you save energy
-
45 years of Remodeling Excellence
Weiland pivot doors are designed for homeowners and builders that want to create grand openings. Wood and aluminum material options give you more flexibility for design without sacrificing on thermally efficient materials.
Choose from single pivot or double pivot door options and multiple configurations. You can count on the ability to create a custom look for any project because Weiland doors are custom made for each unique client.
- Door panels can be built wider than side-hinged doors
- Pivot doors available with side lites and no frames
- Gang pivot configurations allow you to place multiple pivot doors in a row
- Best hardware components available
- Express Limited Warranty
Weiland is an Andersen Windows and Doors Brand
- Configurations
- Hardware
- Material
- Finishes
- Glass
- Sill Details
Configurations
Pivot Door Configurations
-

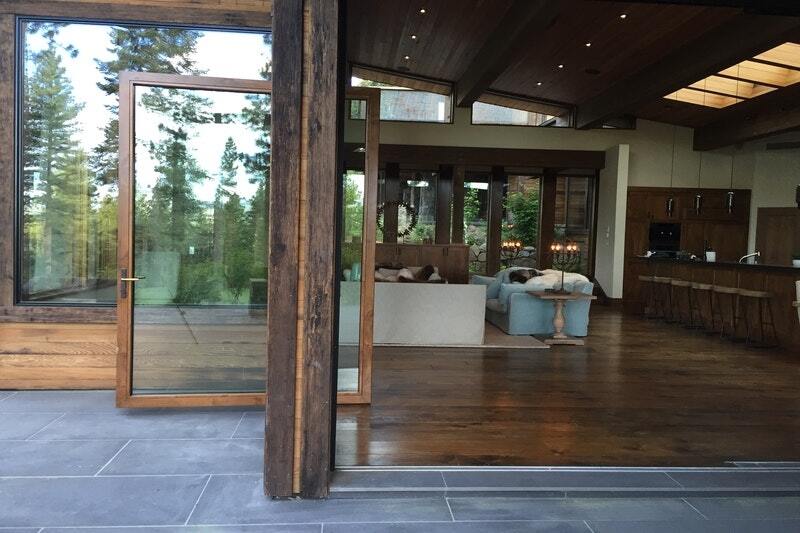

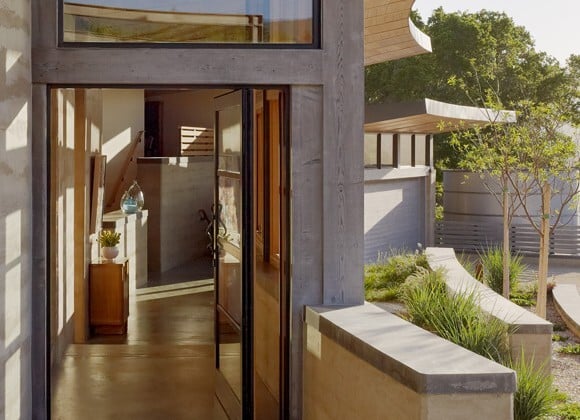

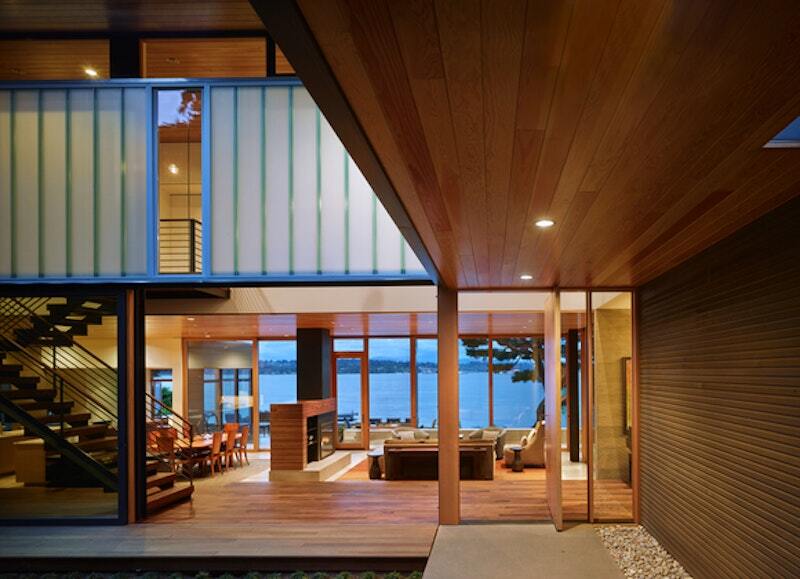

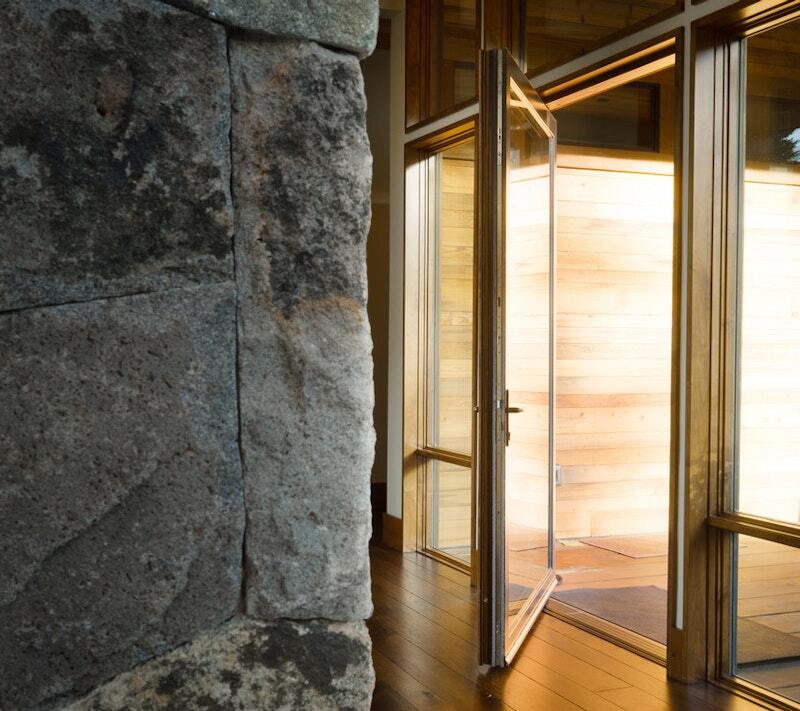

Single Pivot
- Can be built to swing in, swing out, or both
- Panel doors can be built wider than single-hinged doors
- Available in combo with side lites and no frames in between
- Available in gang pivot configuration which is multiple pivot doors in a row
-

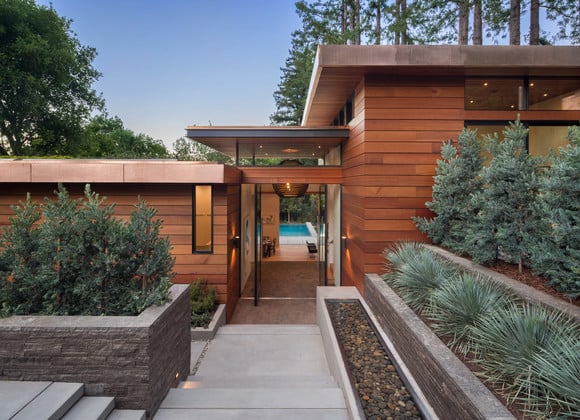

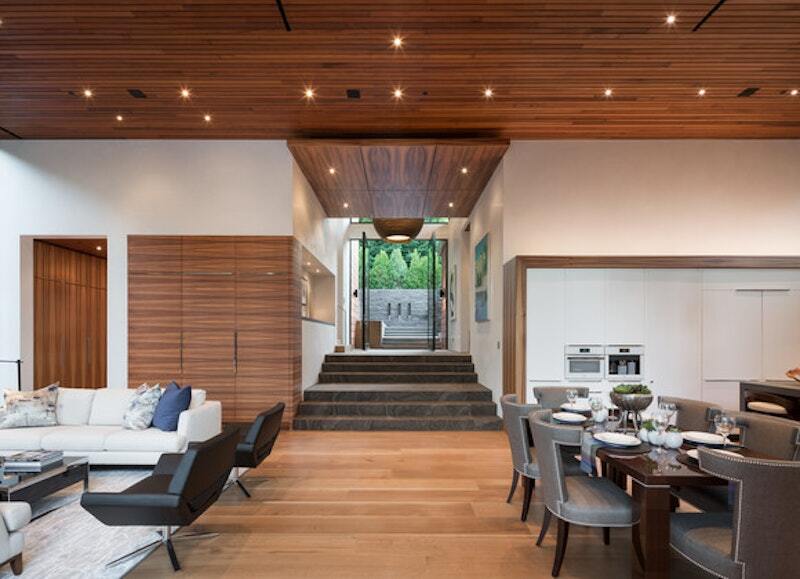

Double Pivot
- Can be built to swing in, swing out, but not both
- Double pivot doors operate as two balanced panels that seem almost independent of their frame
- Available in combo with side lites and no frames in between
- Available in gang pivot configuration which is multiple pivot doors in a row
Hardware
Hardware and Handles
-
Hardware on Weiland doors is manufactured by European vendors, some with over 100 years of history. Rigorous testing and experience with custom applications, Weiland hardware is engineered for dependability and smooth operation. These doors are pure luxury from look to feel.
Milan Handles
-

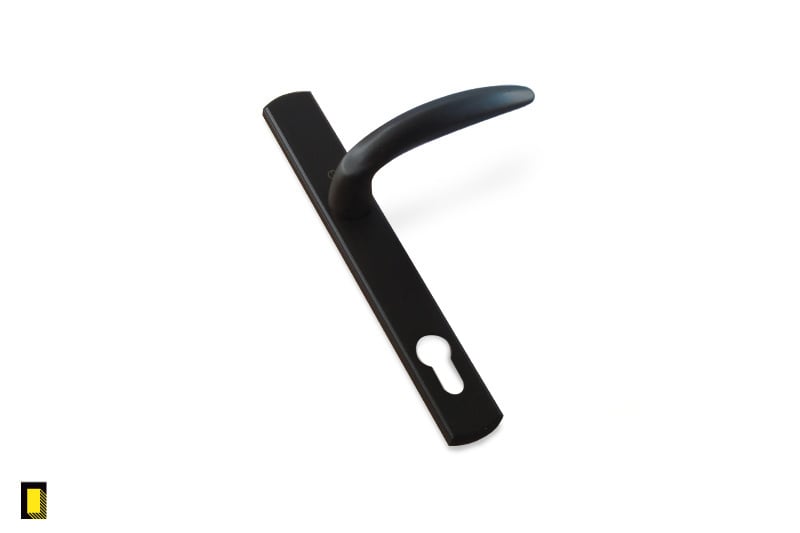

Black -

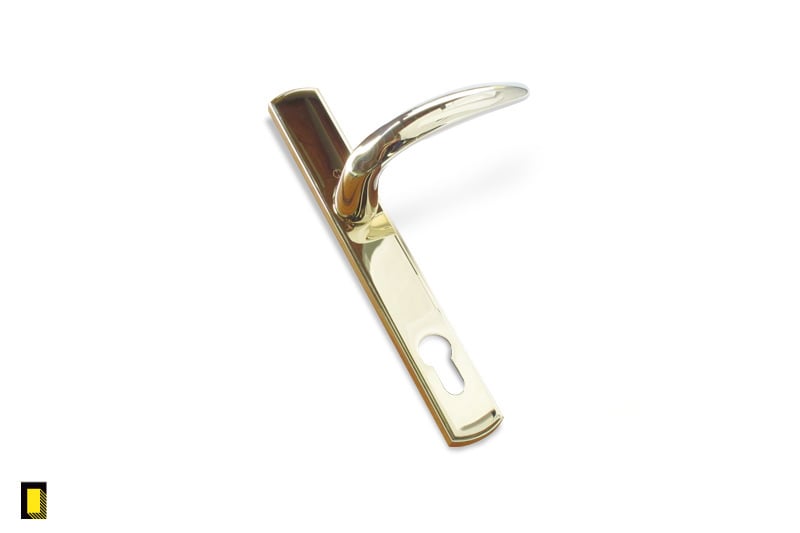

Bright Brass -

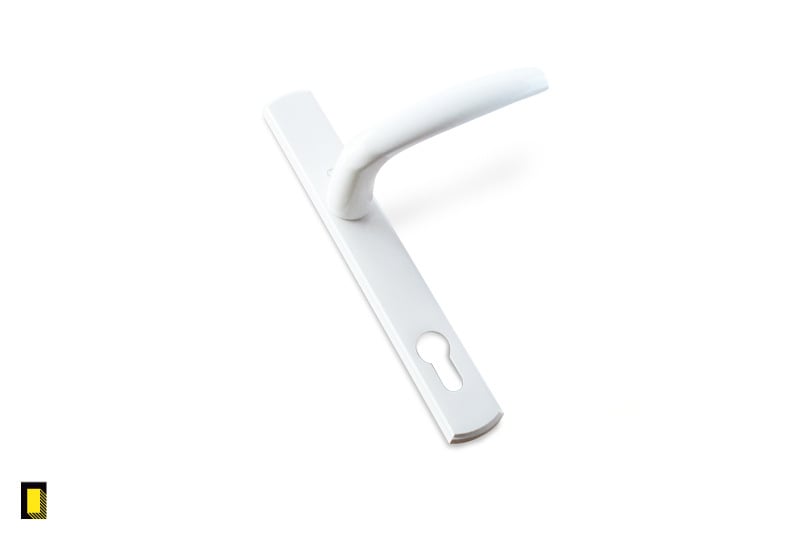

Bright White -

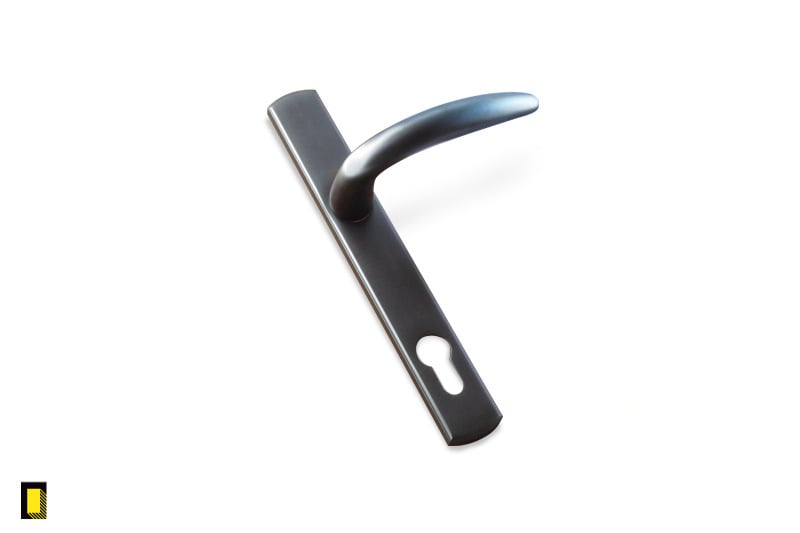

Metal Dark Bronze -

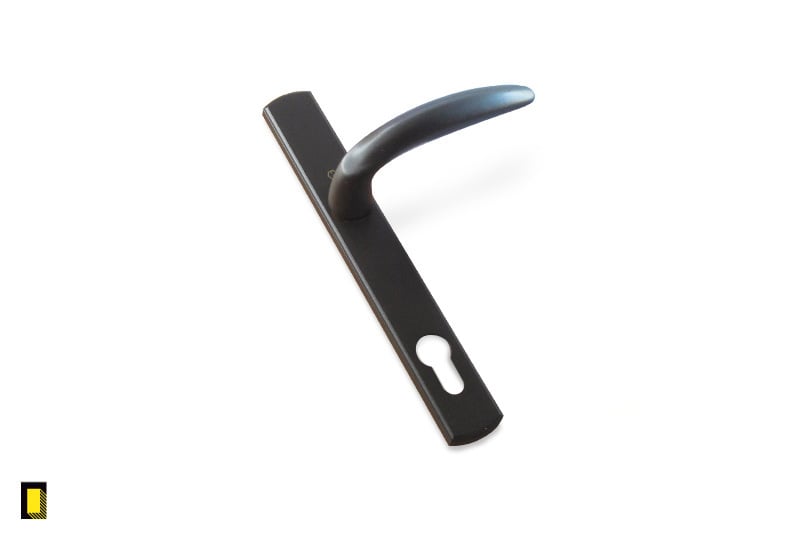

Rustic Umber -

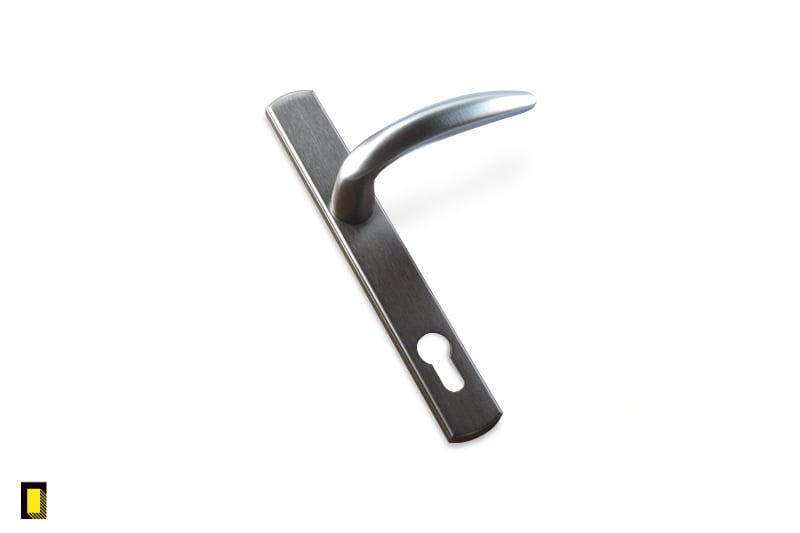

Satin Nickel
Verona Handles
-
Matte Black -
Brushed Chrome -
Brass -
Oil Rubbed Bronze
Designed For You
-
Luxurious Openings

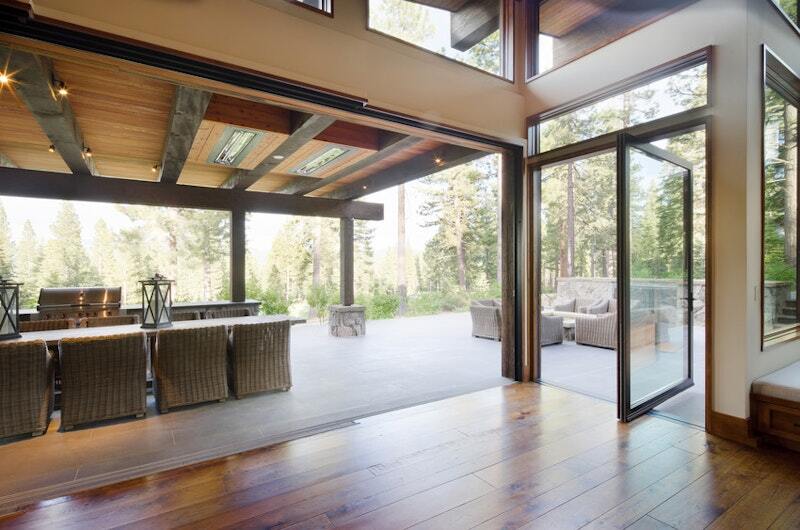

Create grand entryways to your front entrance or patio. The luxurious feel of pivot doors will leave a lasting impression on friends and guests.
-
Custom-Tailored
Weiland pivot doors can be built to open, inward, outward, or in both directions. Design flexibility allows homeowners and builders to create a custom-tailored look for any project.
Material
Pivot Door Material Options
-
Aluminum Wood
- Max Panel Height: 13'
- Max Panel Width: 5' (w/single bottom rail)
- Max Panel Width: 8' (w/double bottom rail)
- Sash Dimensions: 3-1/2" wide
- Sash Thickness: 3-3/16"
- Bottom Rail: 3-1/2" wide
-
All Aluminum
- Max Panel Height: 16'
- Max Panel Width: 6' (w/single bottom rail)
- Max Panel Width: 9' (w/double bottom rail)
- Sash Dimensions: 3-1/2" wide
- Sash Thickness: 3-3/16"
- Bottom Rail: 3-1/2" wide
-
All Wood
- Max Panel Height: 12'
- Max Panel Width: 6' (w/single bottom rail)
- Max Panel Width: 8' (w/double bottom rail)
- Sash Dimensions: 3-5/8" wide
- Sash Thickness: 3-3/16"
- Bottom Rail: 3-5/8" wide
Finishes
Pivot Door Color & Finish Options
-
Aluminum Finish
Weiland aluminum doors are protected by high-quality Kynar 500®. This resin-based coating provides protection against weathering and provides outstanding color retention.
- Meets AAMA 2605-05 performance requirement
- Powder coating & anodizing are available (anodizing adds to lead time)
-
Finest Wood Species
Choose from among the highest quality wood species available. Your wide range of choices allows you to plan beyond your doors and throughout your home.
Wood Species
- Mahogany
- Douglas Fir
- Walnut
- Cherry
- Alder
-
Custom Color Matching
Weiland also offers custom matching to any clad colors of window manufacturers. Custom color matching requires color samples and may result in higher cost or longer lead times.
Glass
Glass Options
-
Energy Efficient options to reduce heat transfer and minimize fading caused by UV rays:
- Insulated Glass Units
- Tempered Glass
- Coatings: laminated, tinted, Low-E3
You also have the choice of no glass if you would prefer to have the glazing done on site by another team.
Divided lites and lock rails are also available.
-
Specialty Glass
Weiland offers specialty glass options to enhance the beauty and performance of your custom product. Glass is inspected to meet Weiland quality expectations.
Any glass available up to 1-1/2" thick can be ordered to match other glass types available and meet necessary energy requirements.
-
High Performance
Weiland works with various glass suppliers and manufacturers to ensure the glass in your doors offer the highest performance.
Sill Details
Sill Considerations
-
Standard Flush Sill
Weiland's standard flush sill uses a pivot box which makes an adjustment of the closer easy. The pivot box design prevents the need for a separate cover and conceals the threshold's screws.
-
Patented Flush Sill
Weiland's patented flush sill is an award-winning design tested to meet weather ratings. This sill is designed for ADA/FFHA threshold requirements.
Product Specs
| Brand | Weiland |
|---|---|
| Series | Pivot Doors |
| Interior Colors | Natural Wood: Mahogany, Douglas Fir, Walnut, Cherry, Alder |
| Exterior Colors | Standard Kynar 500® finishes, +50 exterior colors, custom color matching available |
| Composition | Aluminum & Wood, All Aluminum, and All Wood |
| Construction Type | Build, Remodel, Replace |
| Min Sizes | Vary by Composition |
|---|---|
| Max Sizes | Vary by Composition |
| Sash Dimensions | Vary by Composition |
| Sill Details | Standard flush sill or patented flush sill |
| Hallmark Certification | Yes |
|---|---|
| NFRC Certification | Yes |
| WDMA Member | Yes |
| Warranty | Express Limited Warranty |
| Broken Glass Coverage | No |
| IG Seal Failure Coverage | Varies by glass unit |
