What sizes of LP SmartSide siding are available?

LP SmartSide offers multiple siding products, each piece of engineered wood siding is treated to prevent splits and warping. Siding products are available in multiple widths and up to 16’ in length for fewer seams and less waste.

Check out the sizes of each profile by style, skip ahead by using the links below.

Lap Siding

  • Cedar Texture Lap
    • 38 Series Cedar Texture Lap (Strand)
    • 76 Series Cedar Texture Lap (Strand)
    • 76 Series Cedar Texture Lap (Fiber)
    • 76 Series SmartLock Cedar Texture Lap (Strand)
    • 120 Series Self-Aligning Cedar Texture Lap (Fiber)
  • Smooth Finish Lap
    • 38 Series Smooth Finish Lap (Strand)
    • 76 Series Smooth Finish Lap (Fiber)
  • Colonial Beaded Lap
    • Colonial Beaded Sequoia Texture Lap (Fiber)
    • Colonial Beaded Smooth Finish Lap (Fiber)
  • 12” and 16” Bold Profile Lap
    • Triple 4” Bold Profile Cedar Texture Lap (Fiber)
    • Double 5” Bold Profile Cedar Texture Lap (Fiber)
    • Quad 4” Bold Profile Cedar Texture Lap (Fiber)
    • Triple 5” Bold Profile Cedar Texture Lap (Fiber)
    • Double 5” Bold Profile Cedar Texture Lap (Fiber)

DOWNLOAD: LP SmartSide Lap Siding Coverage Chart(↗)

Shakes & Shingles

Panel & Vertical Siding

  • Cedar Texture Panel
    • 38 Series Cedar Texture Panel 8” o.c. (Strand)
    • 38 Series Cedar Texture Panel No Groove Shiplap Edge (Strand)
    • 38 Series Cedar Texture Panel No Groove Square Edge (Strand)
    • 76 Series Cedar Texture Panel 4” and 8” o.c. (Strand)
    • 76 Series Cedar Texture Panel No Groove Shiplap Edge (Strand)
    • 190 Series Cedar Texture 8” o.c. (Strand)
    • 190 Series Cedar Texture Panel No Groove Shiplap Edge (Strand)
    • 76 Series Cedar Texture Siding Panel and Soffit 8” o.c. (Fiber)
    • 76 Series Cedar Texture Siding Panel and Soffit - Square Edge (Fiber)
  • Stucco Texture Panel
    • Stucco Texture Panel (Fiber)
  • Smooth Finish Panel
    • 76 Series Smooth Finish Panel 8” o.c. (Fiber)
    • 76 Series Smooth Finish Panel 8” o.c. (Fiber) with slip sheets
    • 76 Series Smooth Finish Siding Panel and Soffit - Square Edge (Fiber)
  • Reverse Board & Batten
    • Reverse Board and Batten Cedar Texture Panel 12” o.c. (Fiber)
  • Vertical Siding
    • 38 Series Cedar Texture Vertical Siding - No Groove (Strand)

Explore: LP SmartSide Catalog

Lap Siding

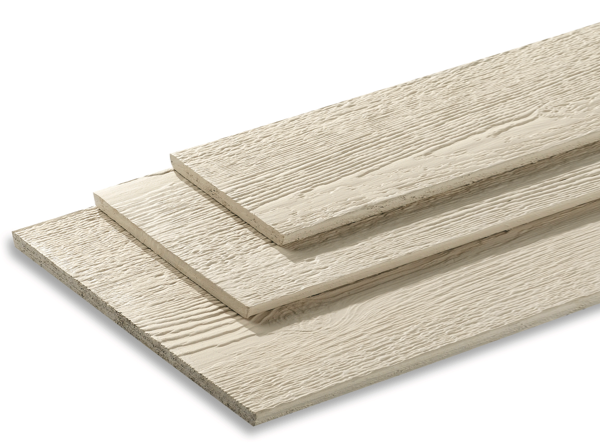

Cedar Texture Lap

38 SERIES CEDAR TEXTURE LAP (STRAND)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

5.84 in.

0.315 in.

1.5 PSF

25796

16 ft.

6.84 in.

0.315 in.

1.5 PSF

40610

16 ft.

7.84 in.

0.315 in.

1.5 PSF

25797

16 ft.

11.84 in.

0.315 in.

1.5 PSF

25799

76 SERIES CEDAR TEXTURE LAP (STRAND)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

5.84 in.

0.375 in.

1.5 PSF

25785

16 ft.

7.84 in.

0.375 in.

1.5 PSF

25786

16 ft.

11.84 in.

0.375 in.

1.5 PSF

25787

76 SERIES CEDAR TEXTURE LAP (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

5.84 in.

0.375 in.

2 PSF

25922

16 ft.

7.84 in.

0.375 in.

2 PSF

25923

16 ft.

9.47 in.

0.375 in.

2 PSF

25924

16 ft.

11.84 in.

0.375 in.

2 PSF

25925

76 SERIES SMARTLOCK CEDAR TEXTURE LAP (STRAND)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

7.84 in.

0.375 in.

1.5 PSF

30317

120 SERIES SELF-ALIGNING CEDAR TEXTURE LAP (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

7.92 in.

0.450 in.

2 PSF

25905

Back to list

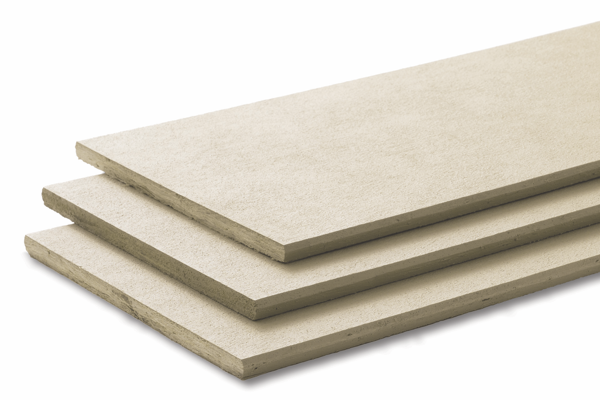

Smooth Finish Lap

38 SERIES SMOOTH FINISH LAP (STRAND)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

5.84 in.

0.315 in.

1.5 PSF

41338

16 ft.

7.84 in.

0.315 in.

1.5 PSF

41339

16 ft.

11.84 in.

0.315 in.

1.5 PSF

41340

76 SERIES SMOOTH FINISH LAP (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

5.84 in.

0.375 in.

2 PSF

25919

16 ft.

7.84 in.

0.375 in.

2 PSF

25920

16 ft.

11.84 in.

0.375 in.

2 PSF

25921

Back to list

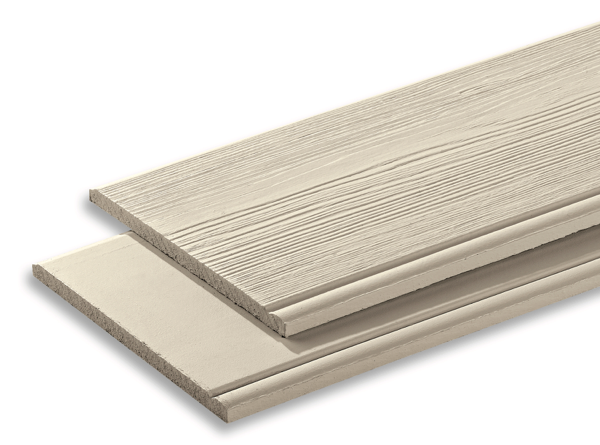

Colonial Beaded Lap

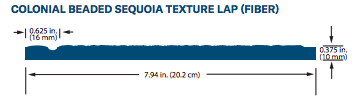

COLONIAL BEADED SEQUOIA TEXTURE LAP (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

7.94 in.

0.375 in.

2 PSF

25904

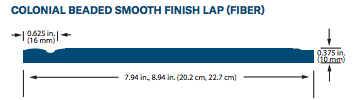

COLONIAL BEADED SMOOTH FINISH LAP (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

7.94 in.

0.375 in.

2 PSF

25903

16 ft.

8.94 in.

0.375 in.

2 PSF

25909

Back to list

12” and 16” Bold Profile Lap

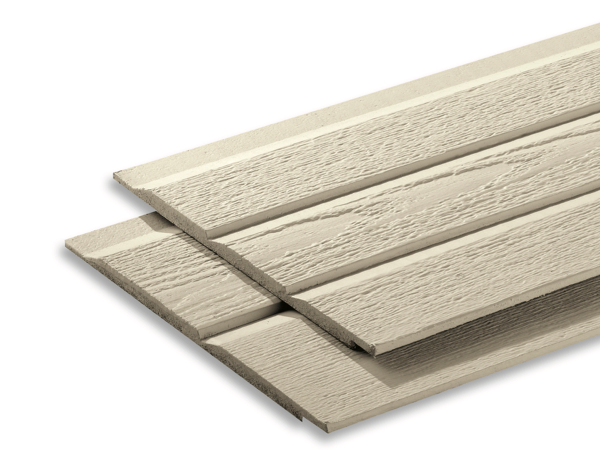

12" Bold

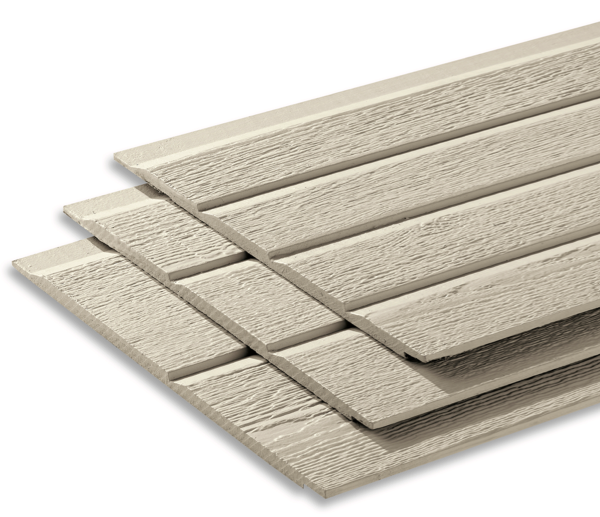

16" Bold

TRIPLE 4” BOLD PROFILE CEDAR TEXTURE LAP (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

11.86 in.

0.450 in.

2 PSF

25906

DOUBLE 5” BOLD PROFILE CEDAR TEXTURE LAP (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

11.86 in.

0.450 in.

2 PSF

25907

QUAD 4” BOLD PROFILE CEDAR TEXTURE LAP (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

15.94 in.

0.450 in.

2 PSF

25910

TRIPLE 5” BOLD PROFILE CEDAR TEXTURE LAP (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

15.94 in.

0.450 in.

2 PSF

25910

DOUBLE 8” BOLD PROFILE CEDAR TEXTURE LAP (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

15.94 in.

0.450 in.

2 PSF

25911

DOWNLOAD: LP SmartSide Lap Siding Coverage Chart(↗)

Back to list

Shakes & Shingles

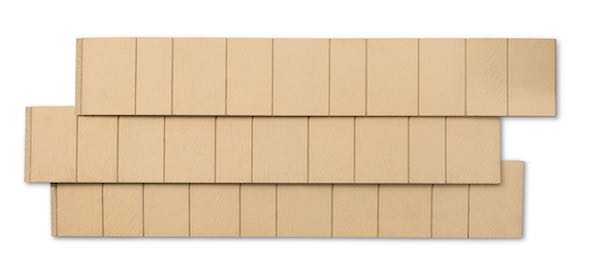

Perfection Shingle

PERFECTION SHINGLE LAP (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

4 ft.

7.88 in.

0.375 in.

1.5 PSF

40796

Back to list

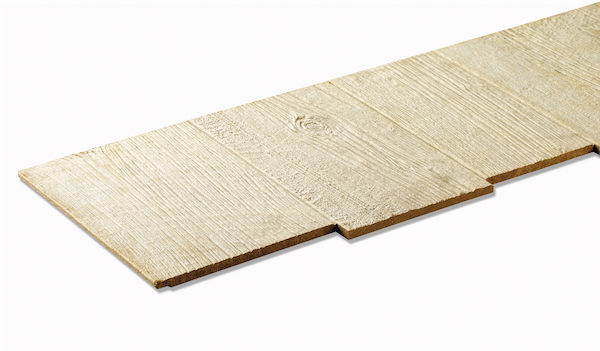

Cedar Texture Shakes

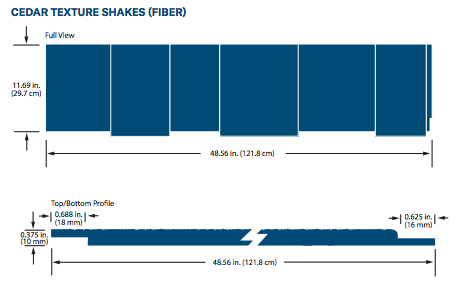

CEDAR TEXTURE SHAKES (FIBER)

Length

Actual Width

Minimum Thickness

Weight

PID Number

4 ft.

11.69 in.

0.375 in.

2 PSF

28541

Back to list

Panel & Vertical Siding

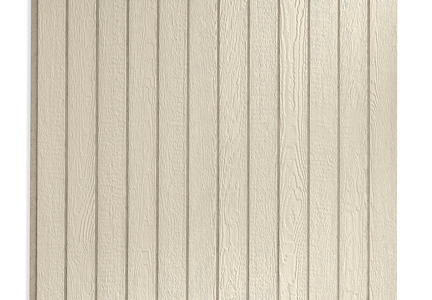

Cedar Texture Panel

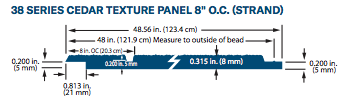

38 SERIES CEDAR TEXTURE PANEL 8” O.C. (STRAND)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

6 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.315 in.

1.5 PSF

27805

7 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.315 in.

1.5 PSF

27806

8 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.315 in.

1.5 PSF

25840

9 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.315 in.

1.5 PSF

25843

10 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.315 in.

1.5 PSF

25844

12 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.315 in.

1.5 PSF

25845

38 SERIES CEDAR TEXTURE PANEL NO GROOVE SHIPLAP EDGE (STRAND)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

No Groove

N/A

48.56 in.

0.315 in.

1.5 PSF

25855*

9 ft.

No Groove

N/A

48.56 in.

0.315 in.

1.5 PSF

29189*

10 ft.

No Groove

N/A

48.56 in.

0.315 in.

1.5 PSF

25825*

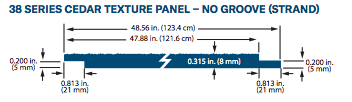

38 SERIES CEDAR TEXTURE PANEL NO GROOVE SQUARE EDGE (STRAND)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

No Groove

N/A

48.56 in.

0.315 in.

1.5 PSF

41044

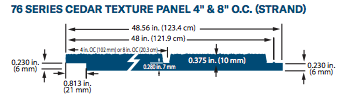

76 SERIES CEDAR TEXTURE PANEL 4” AND 8” O.C. (STRAND)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

4 in. o.c.

⅜ in.

48.56 in.

0.375 in.

1.5 PSF

25831

9 ft.

4 in. o.c.

⅜ in.

48.56 in.

0.375 in.

1.5 PSF

25832*

10 ft.

4 in. o.c.

⅜ in.

48.56 in.

0.375 in.

1.5 PSF

25833*

8 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.375 in.

1.5 PSF

25848

9 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.375 in.

1.5 PSF

25850

10 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.375 in.

1.5 PSF

25851

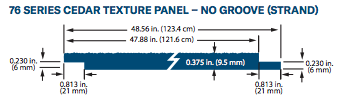

76 SERIES CEDAR TEXTURE PANEL NO GROOVE SHIPLAP EDGE (STRAND)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

No Groove

N/A

48.56 in.

0.375 in.

1.5 PSF

25856

9 ft.

No Groove

N/A

48.56 in.

0.375 in.

1.5 PSF

25857

10 ft.

No Groove

N/A

48.56 in.

0.375 in.

1.5 PSF

25858

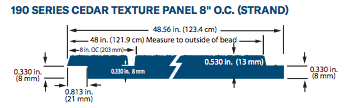

190 SERIES CEDAR TEXTURE PANEL 8” O.C. (STRAND)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.530 in.

2 PSF

25852

9 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.530 in.

2 PSF

25853*

10 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.530 in.

2 PSF

25854*

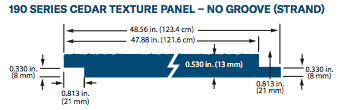

190 SERIES CEDAR TEXTURE PANEL NO GROOVE SHIPLAP EDGE (STRAND)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

No Groove

N/A

48.56 in.

0.530 in.

2 PSF

25859*

9 ft.

No Groove

N/A

48.56 in.

0.530 in.

2 PSF

25860*

10 ft.

No Groove

N/A

48.56 in.

0.530 in.

2 PSF

25861*

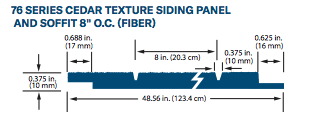

76 SERIES CEDAR TEXTURE SIDING PANEL AND SOFFIT 8” O.C. (FIBER)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.375 in.

2 PSF

25934

9 ft.

8 in. o.c.

⅜ in.

48.56 in.

0.375 in.

2 PSF

25935

76 SERIES CEDAR TEXTURE SIDING PANEL AND SOFFIT - SQUARE EDGE (FIBER)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

No Groove

N/A

47.94 in.

0.375 in.

2 PSF

25926

9 ft.

No Groove

N/A

47.94 in.

0.375 in.

2 PSF

25927

Back to list

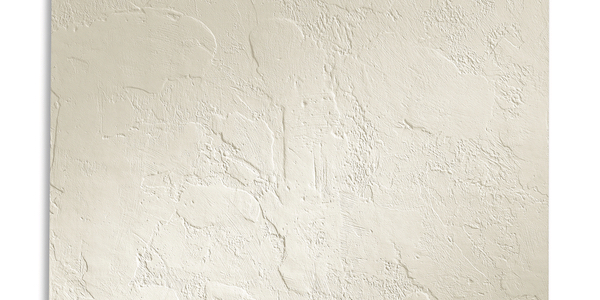

Stucco Texture Panel

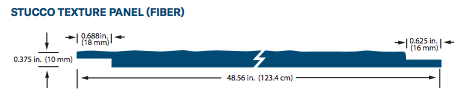

STUCCO TEXTURE PANEL (FIBER)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

No Groove

N/A

47.94 in.

0.375 in.

2 PSF

25926

9 ft.

No Groove

N/A

47.94 in.

0.375 in.

2 PSF

25927

Back to list

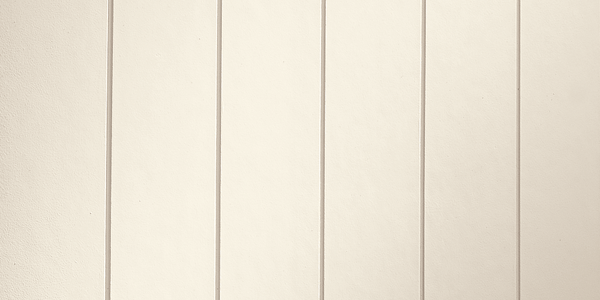

Smooth Finish Panel

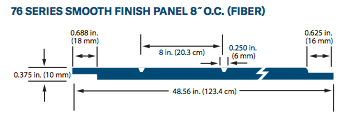

76 SERIES SMOOTH FINISH PANEL 8” O.C. (FIBER)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

8 in. o.c.

¼ in.

48.56 in.

0.375 in.

2 PSF

25932

76 SERIES SMOOTH FINISH PANEL 8” O.C. (FIBER) WITH SLIP SHEETS

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

8 in. o.c.

¼ in.

48.56 in.

0.375 in.

2 PSF

39051

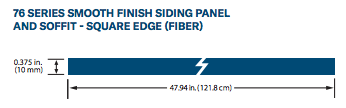

76 SERIES SMOOTH FINISH SIDING PANEL AND SOFFIT - SQUARE EDGE (FIBER)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

No Groove

N/A

47.94 in.

0.375 in.

2 PSF

25930

9 ft.

No Groove

N/A

47.94 in.

0.375 in.

2 PSF

25931

Back to list

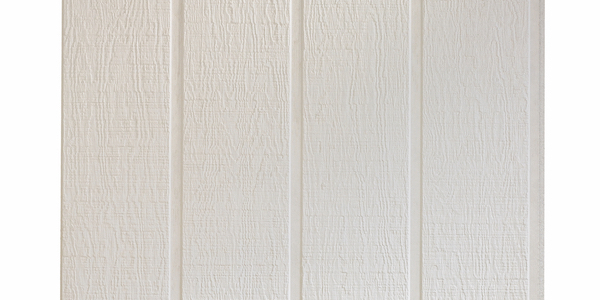

Reverse Board & Batten

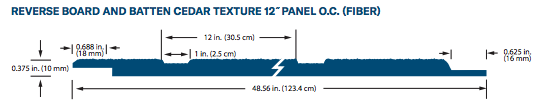

REVERSE BOARD AND BATTEN CEDAR TEXTURE PANEL 12” O.C. (FIBER)

Length

Groove

Groove Width

Actual Width

Minimum Thickness

Weight

PID Number

8 ft.

12 in. o.c.

1 in.

48.56 in.

0.375 in.

2 PSF

25930

9 ft.

12 in. o.c.

1 in.

48.56 in.

0.375 in.

2 PSF

25931

Back to list

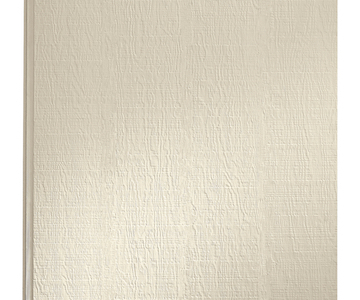

Vertical Siding

38 SERIES CEDAR TEXTURE VERTICAL SIDING - NO GROOVE (STRAND)

Length

Actual Width

Minimum Thickness

Weight

PID Number

16 ft.

15.94 in.

0.315 in.

1.5 PSF

40503

 Back to list

To learn more about LP's siding options visit our LP siding catalog.

Sign up to get our newsletter

A monthly email with our favorite articles about design, home products, tips and the occasional inspirational life lesson.

Request Pricing

Your Contact Details
Products I'm Interested In:
  • Windows
  • Doors
  • Siding
  • Roofing
Subscribe to our blog
  • Subscribe to our blog
FREE ESTIMATE
